CHASSIS: ST52 main frame in accordance with EU 53-62 Standards.

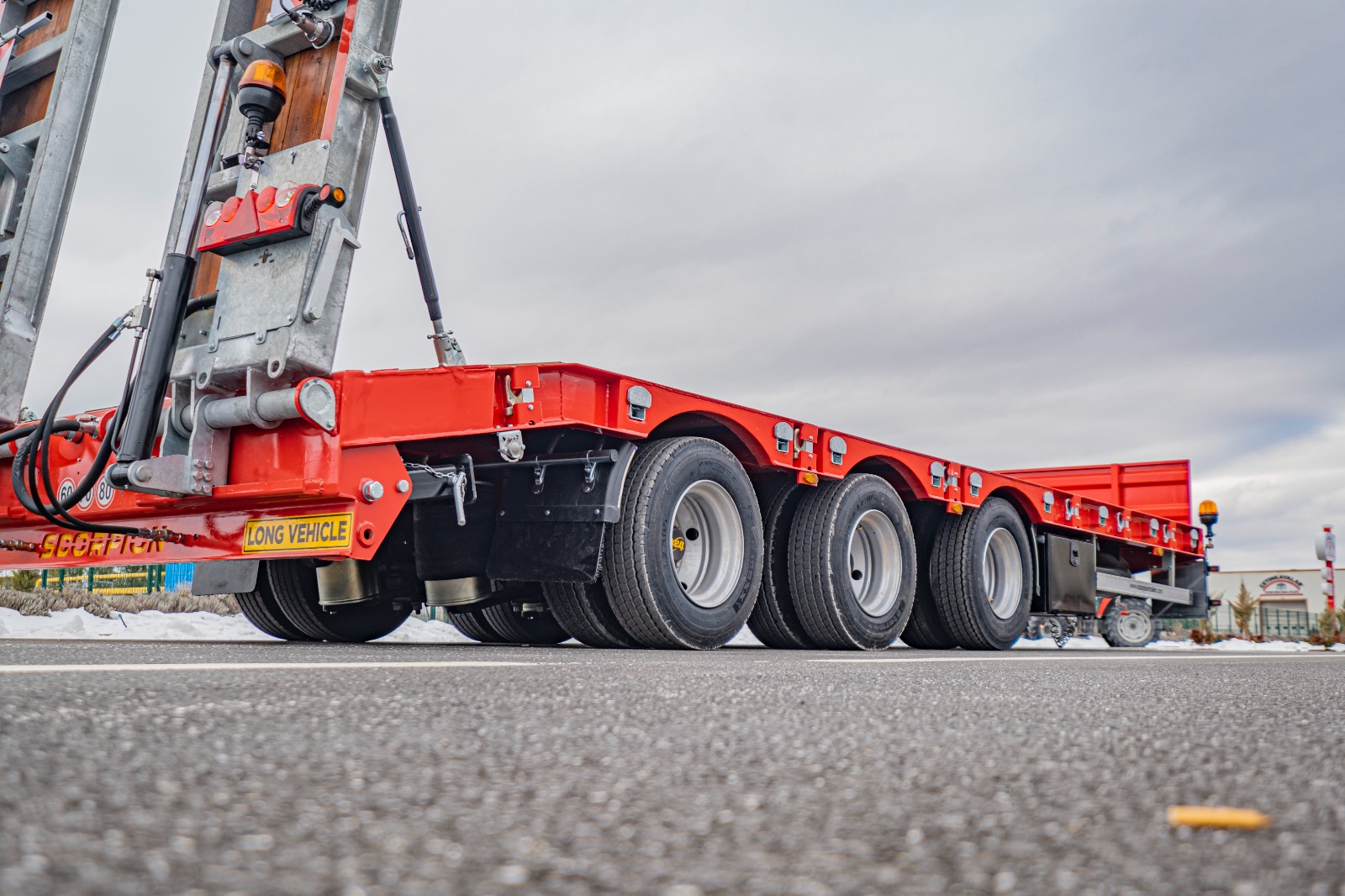

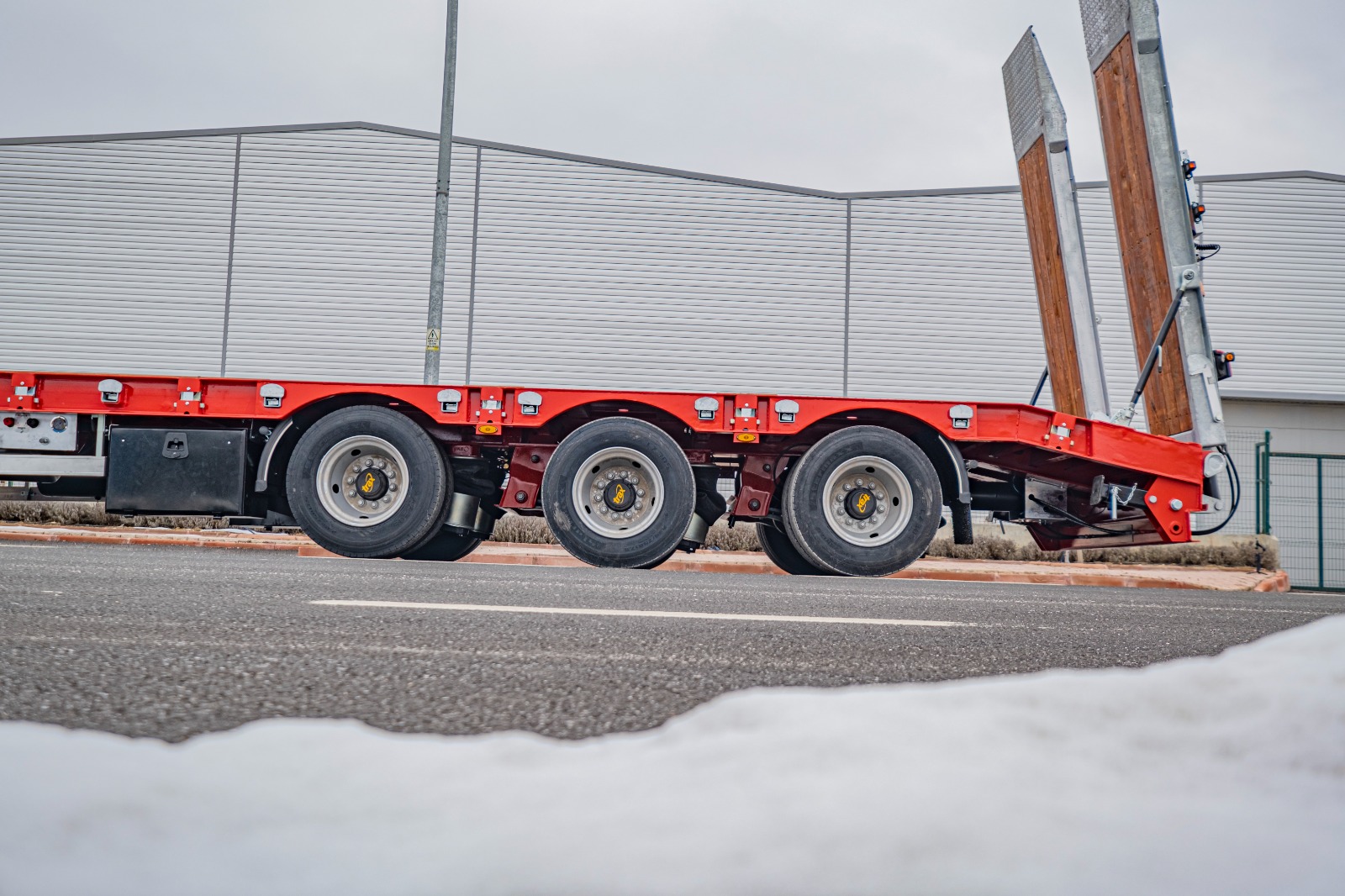

AXLE GROUP: 10 – tonner 3 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand.

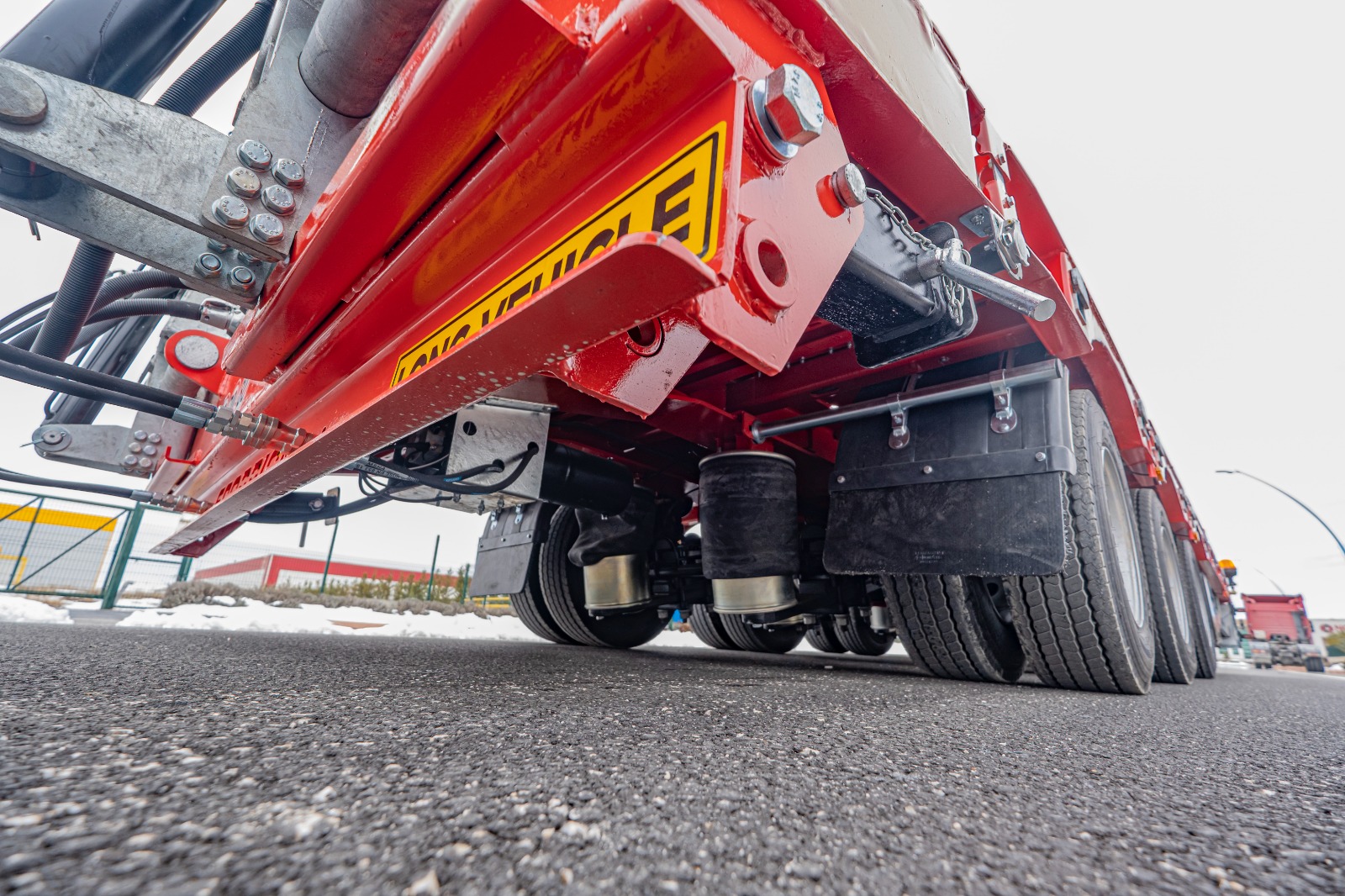

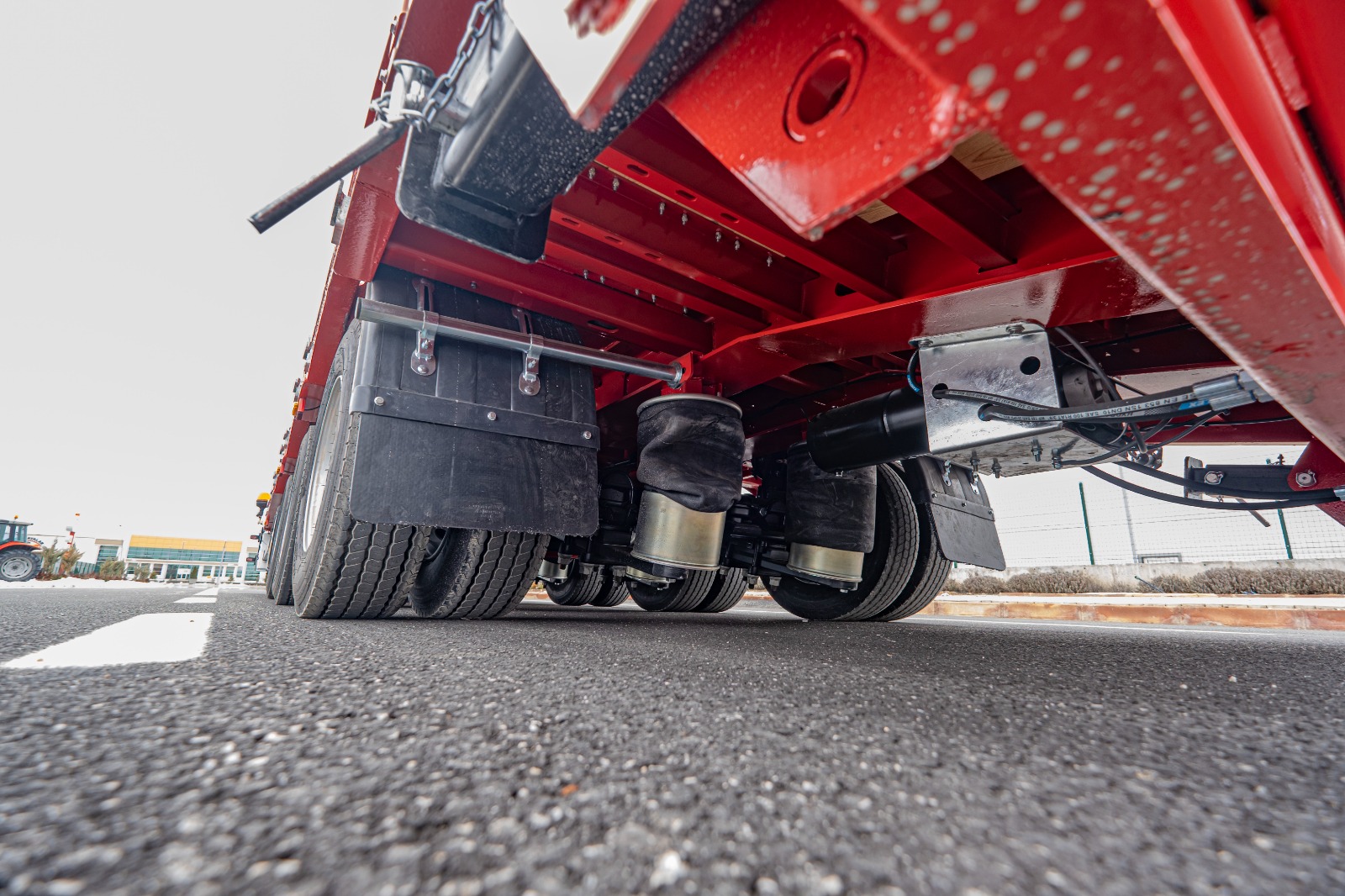

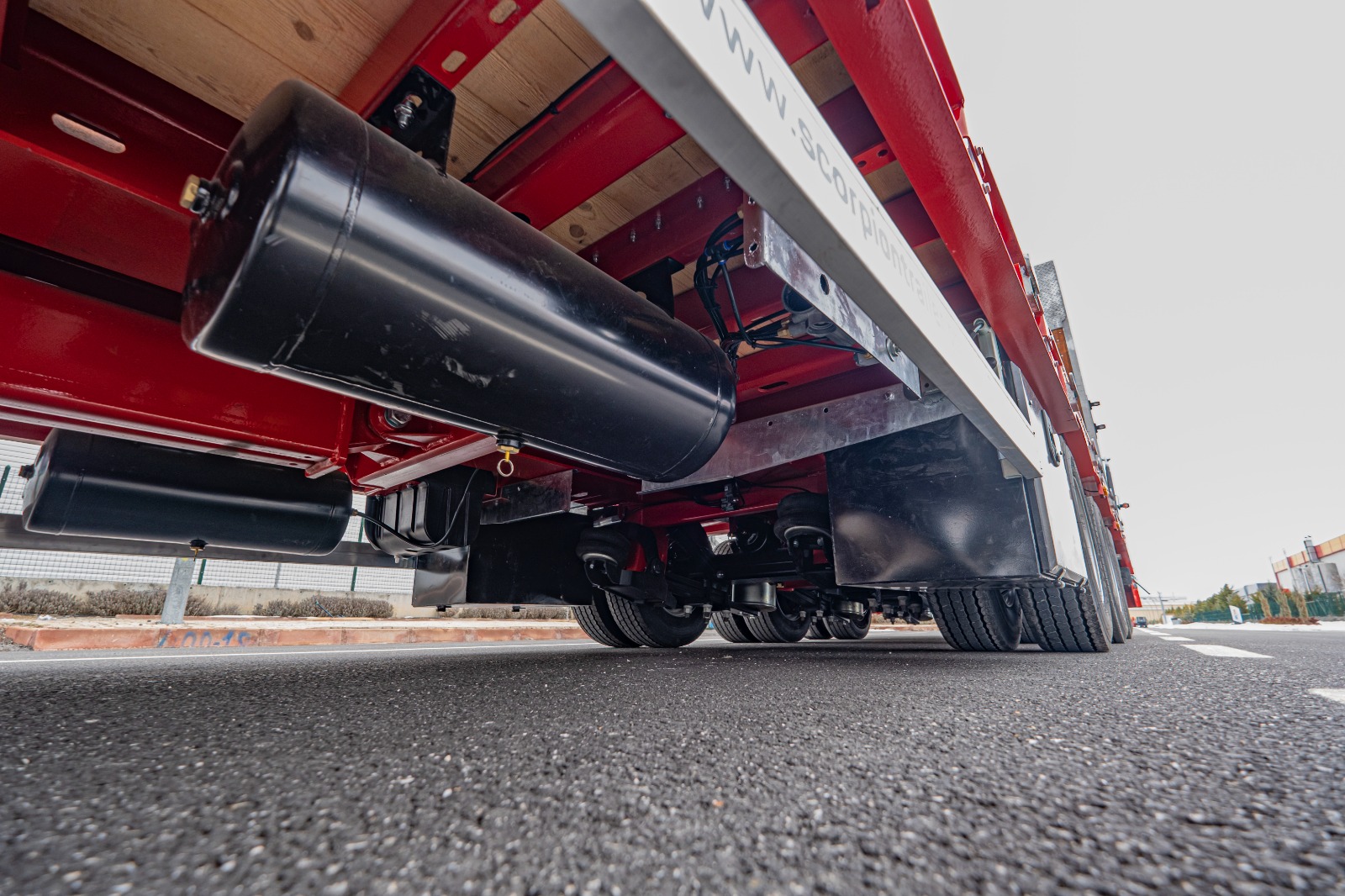

SUSPENSION: Air Suspension.

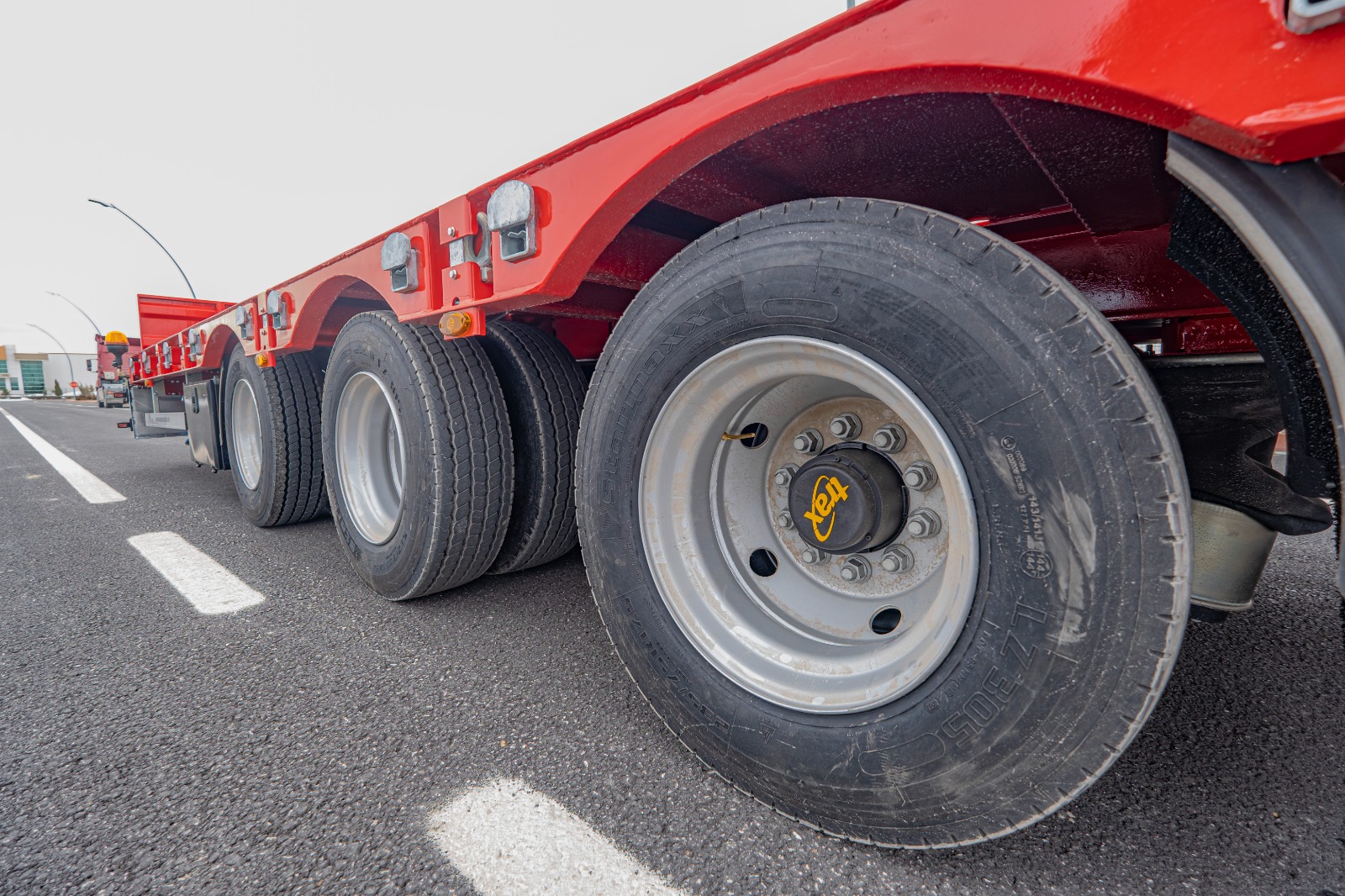

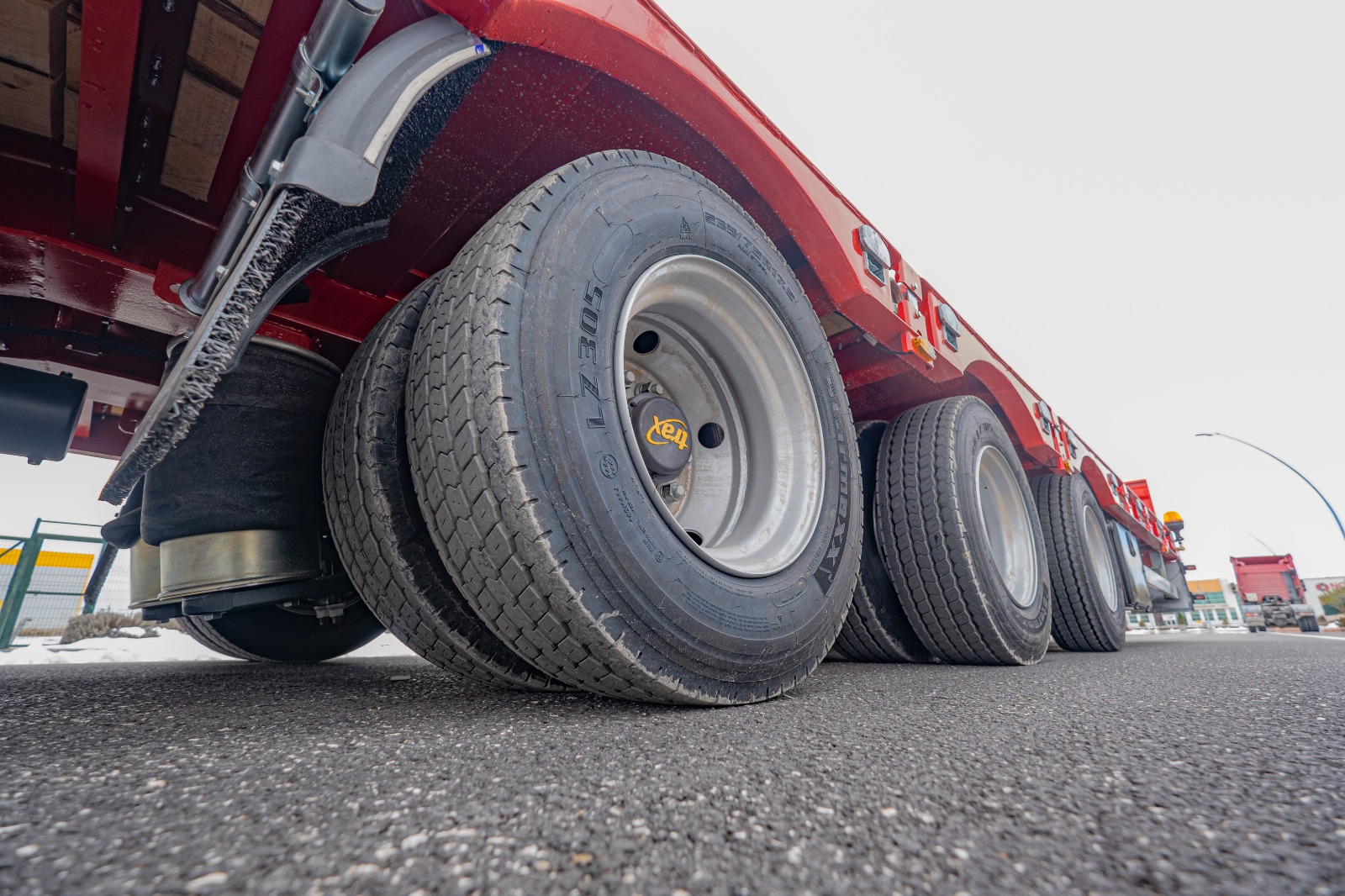

TIRES AND RIMS: Tire options suitable for 17,5” rims.
ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards.

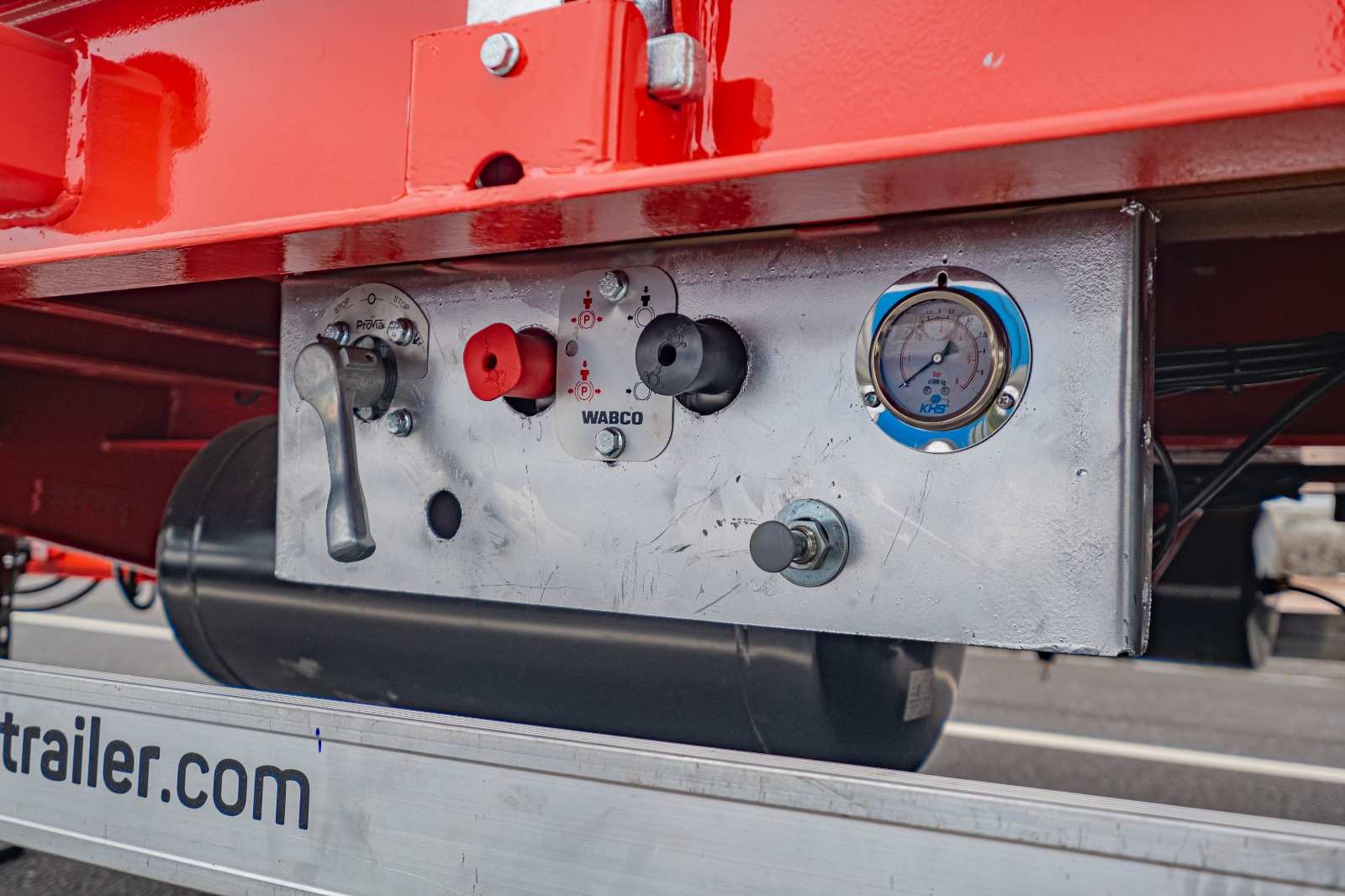

BRAKE SYSTEM: EBS brake system (4S/2M) (4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations.

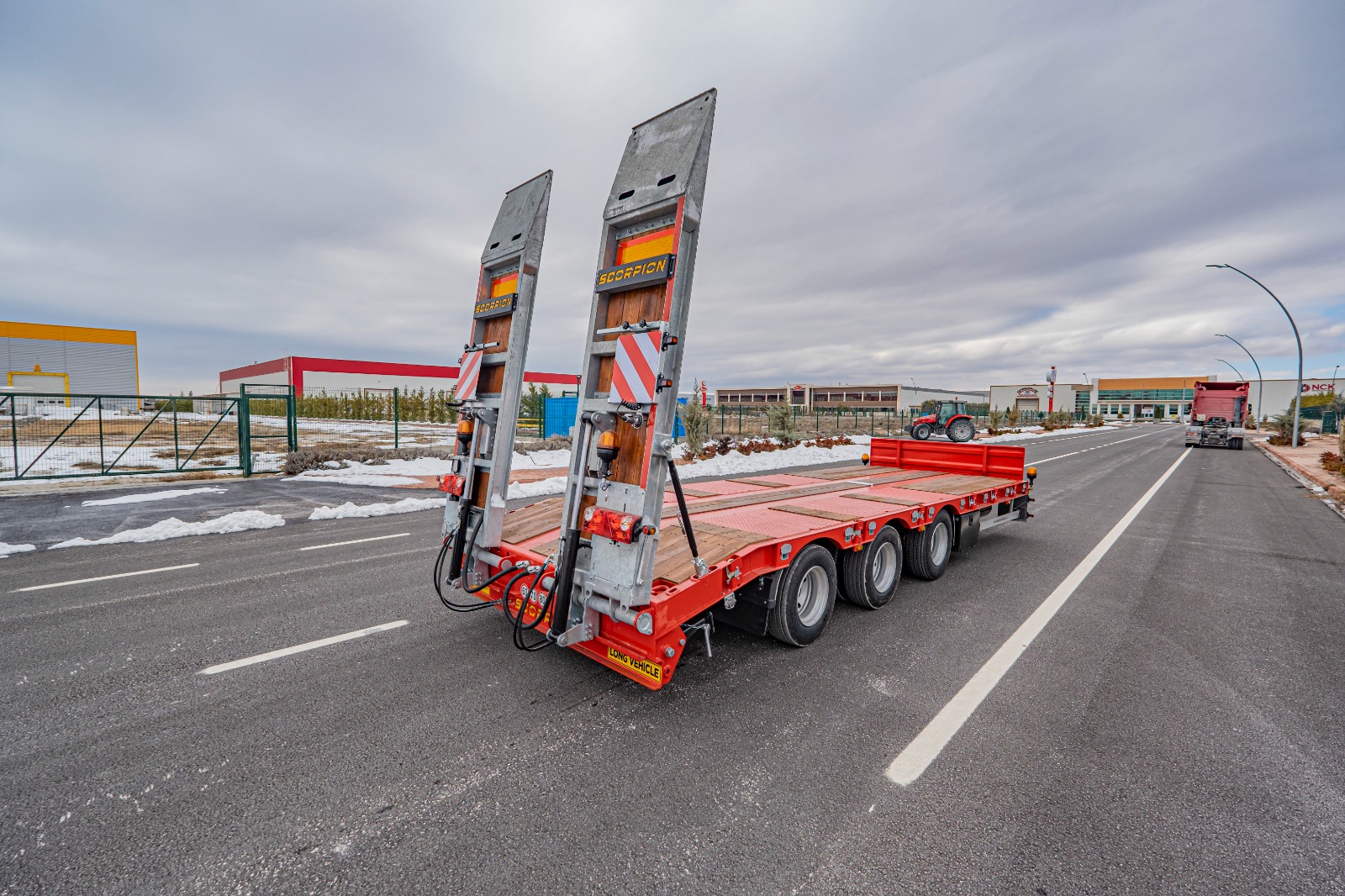

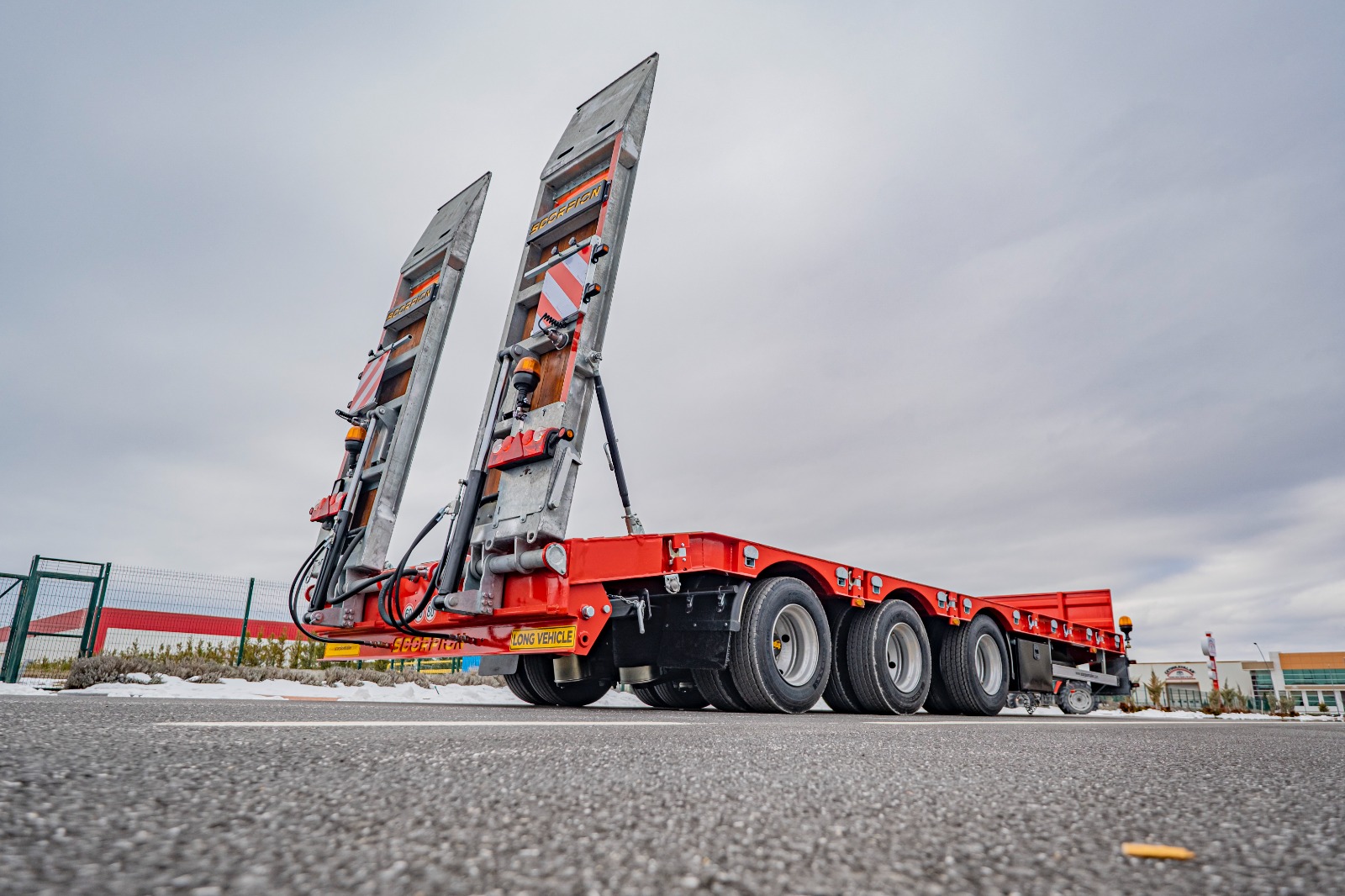

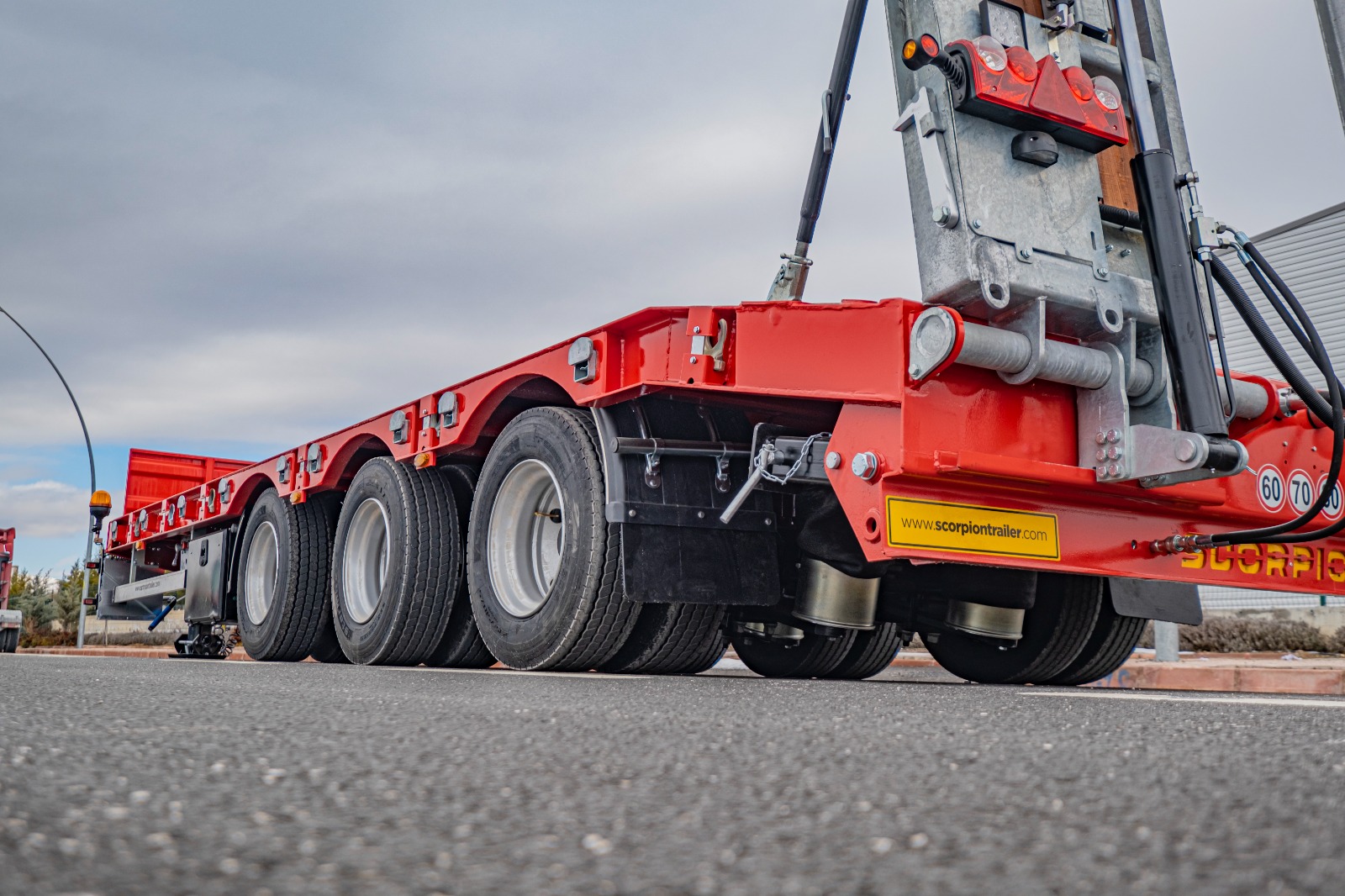

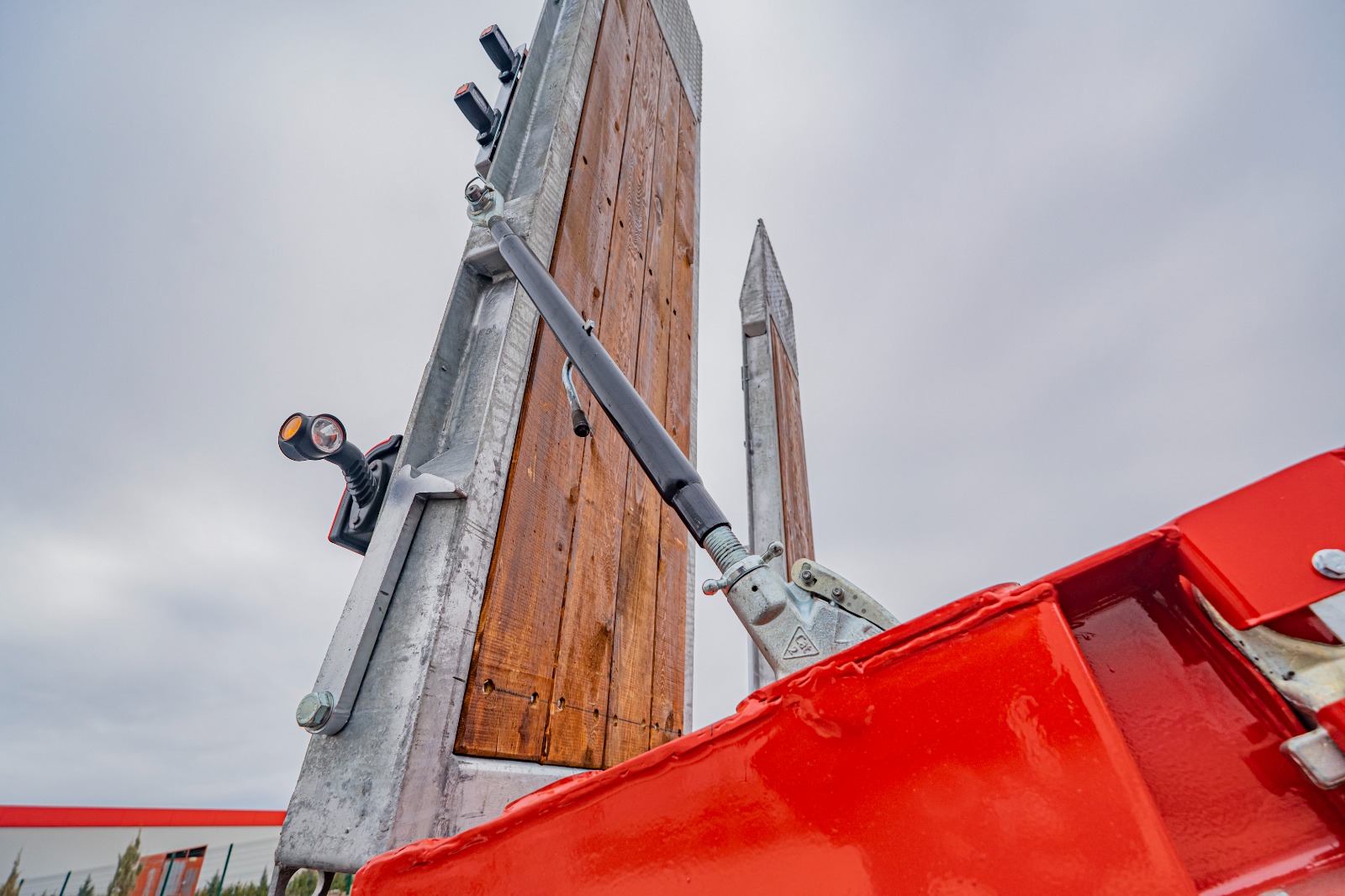

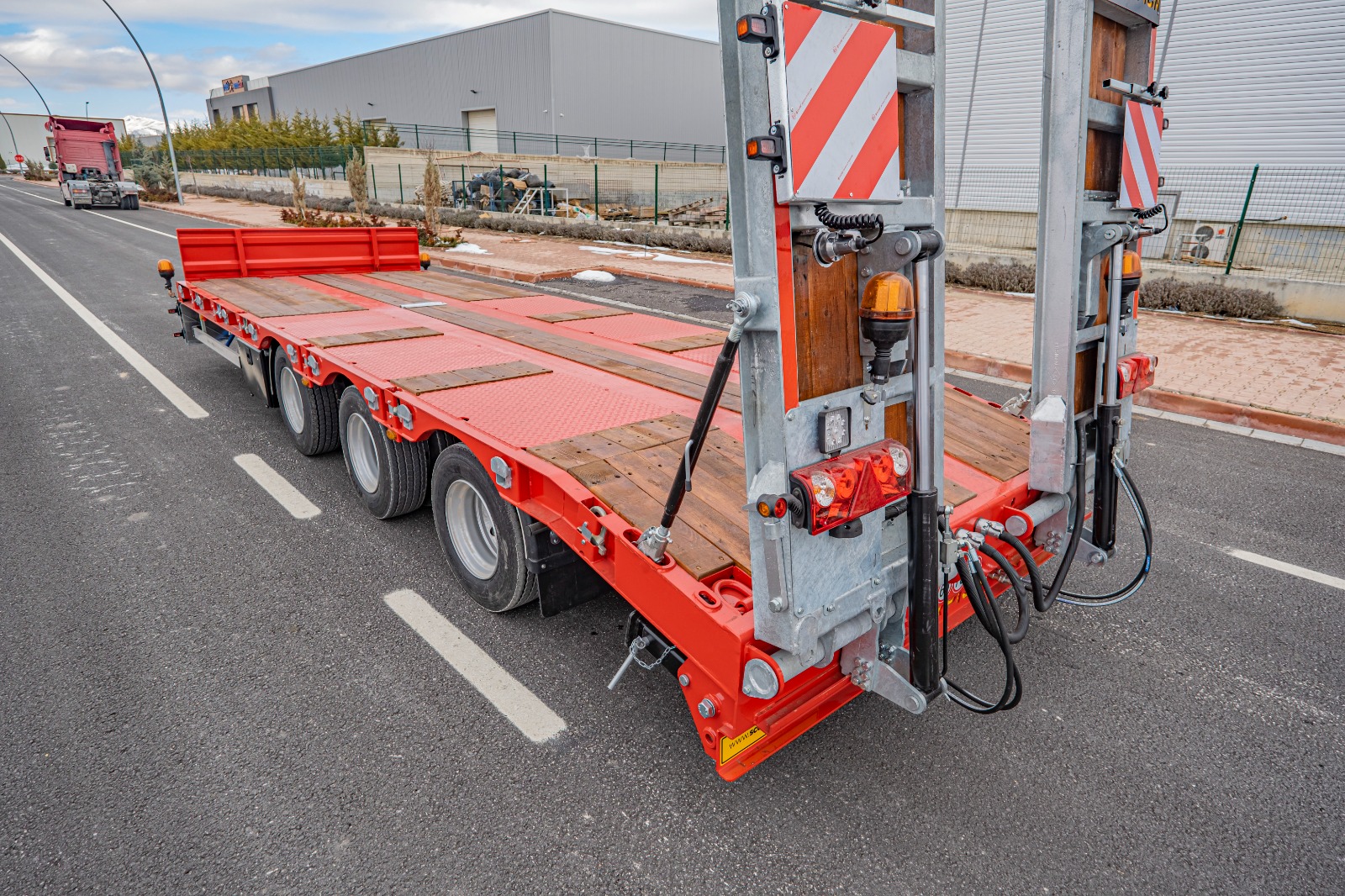

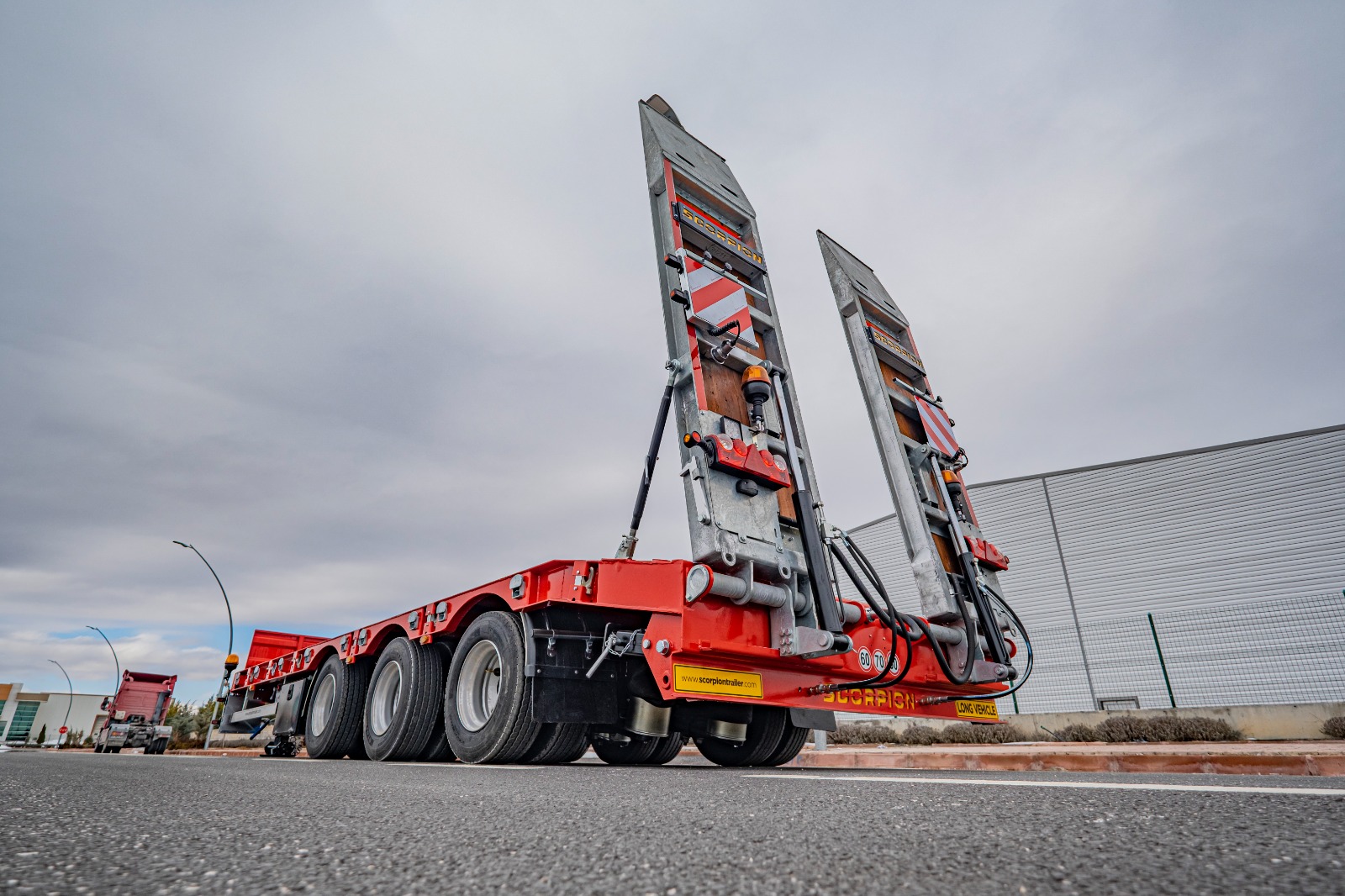

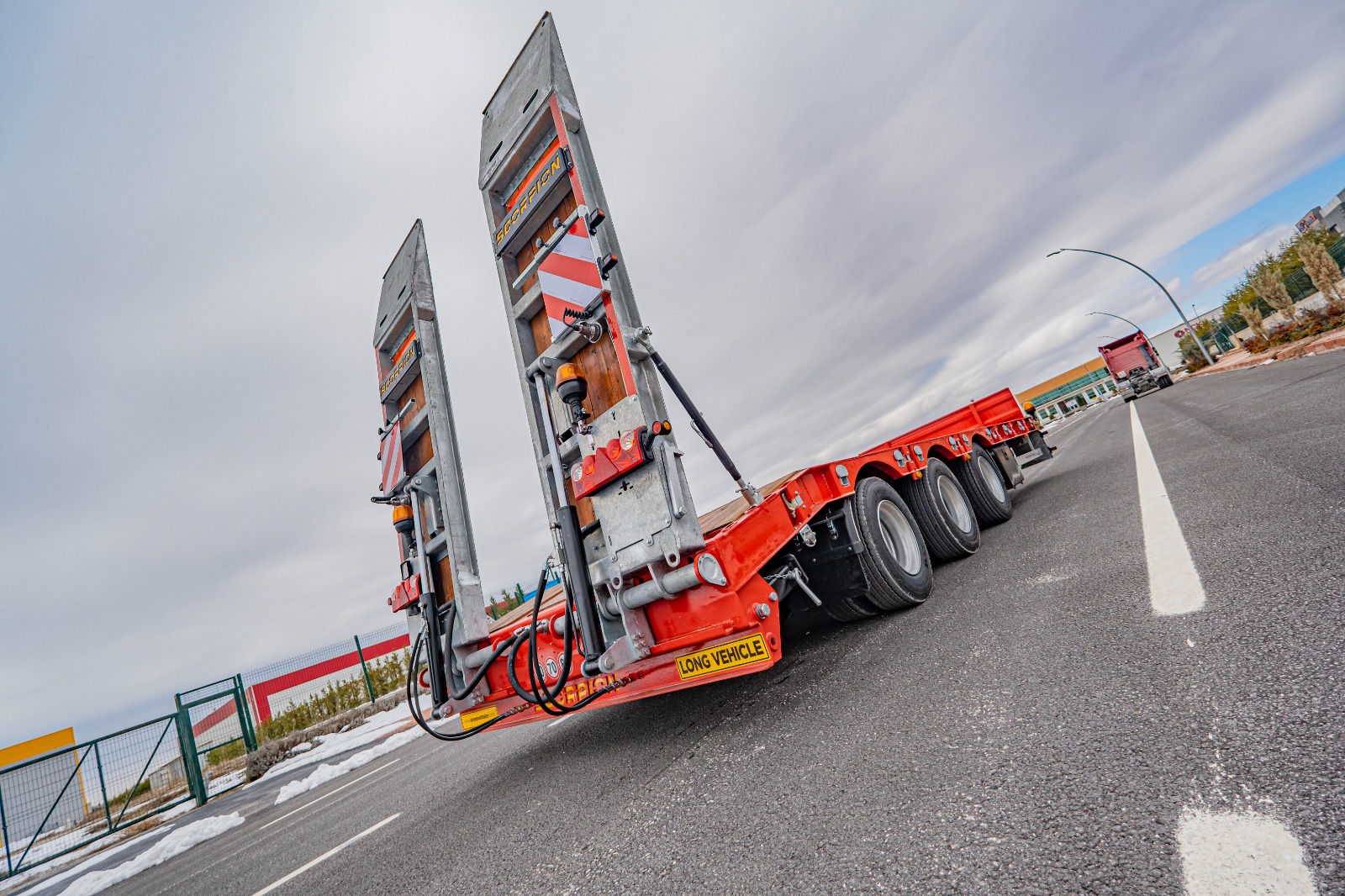

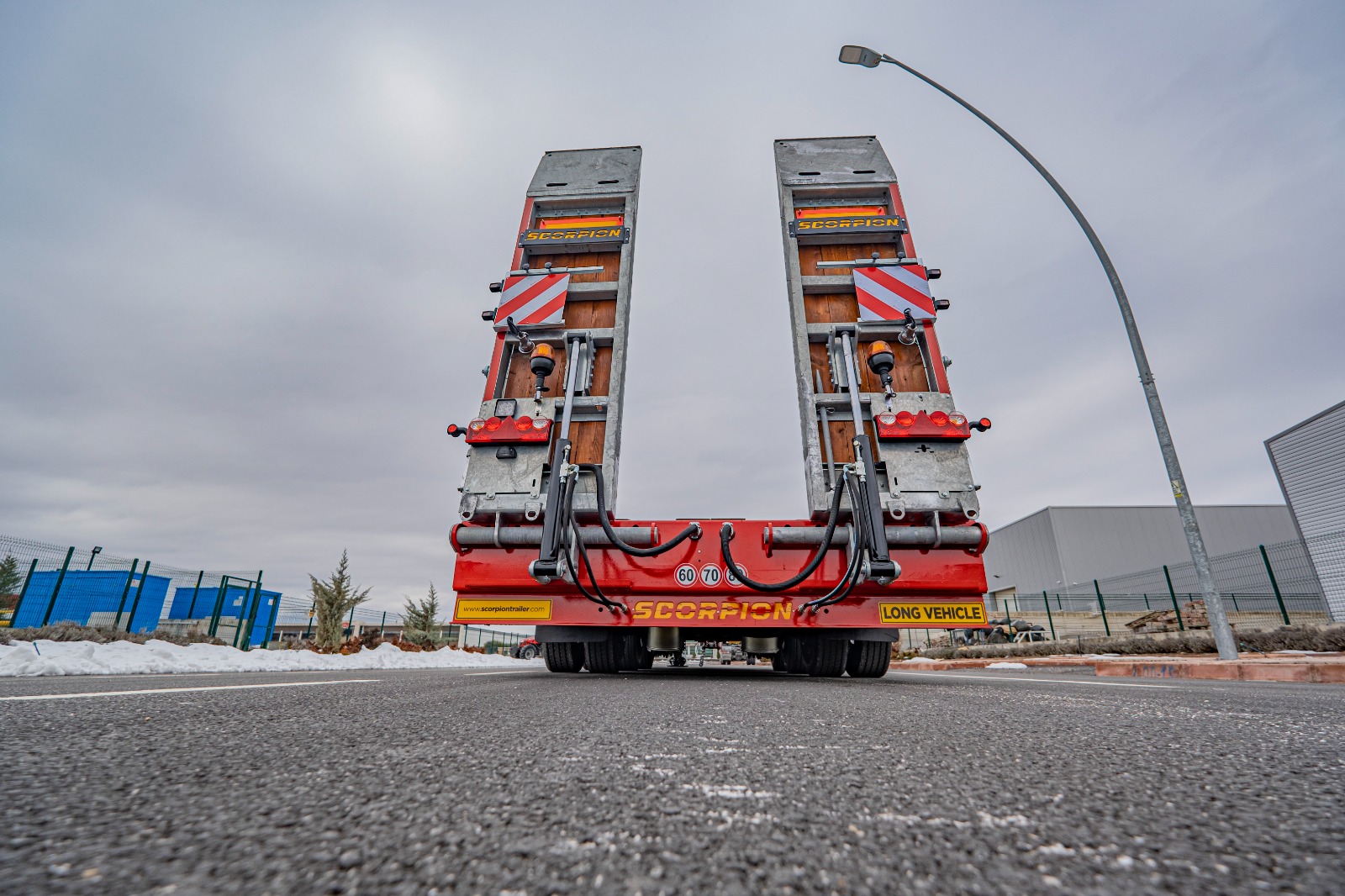

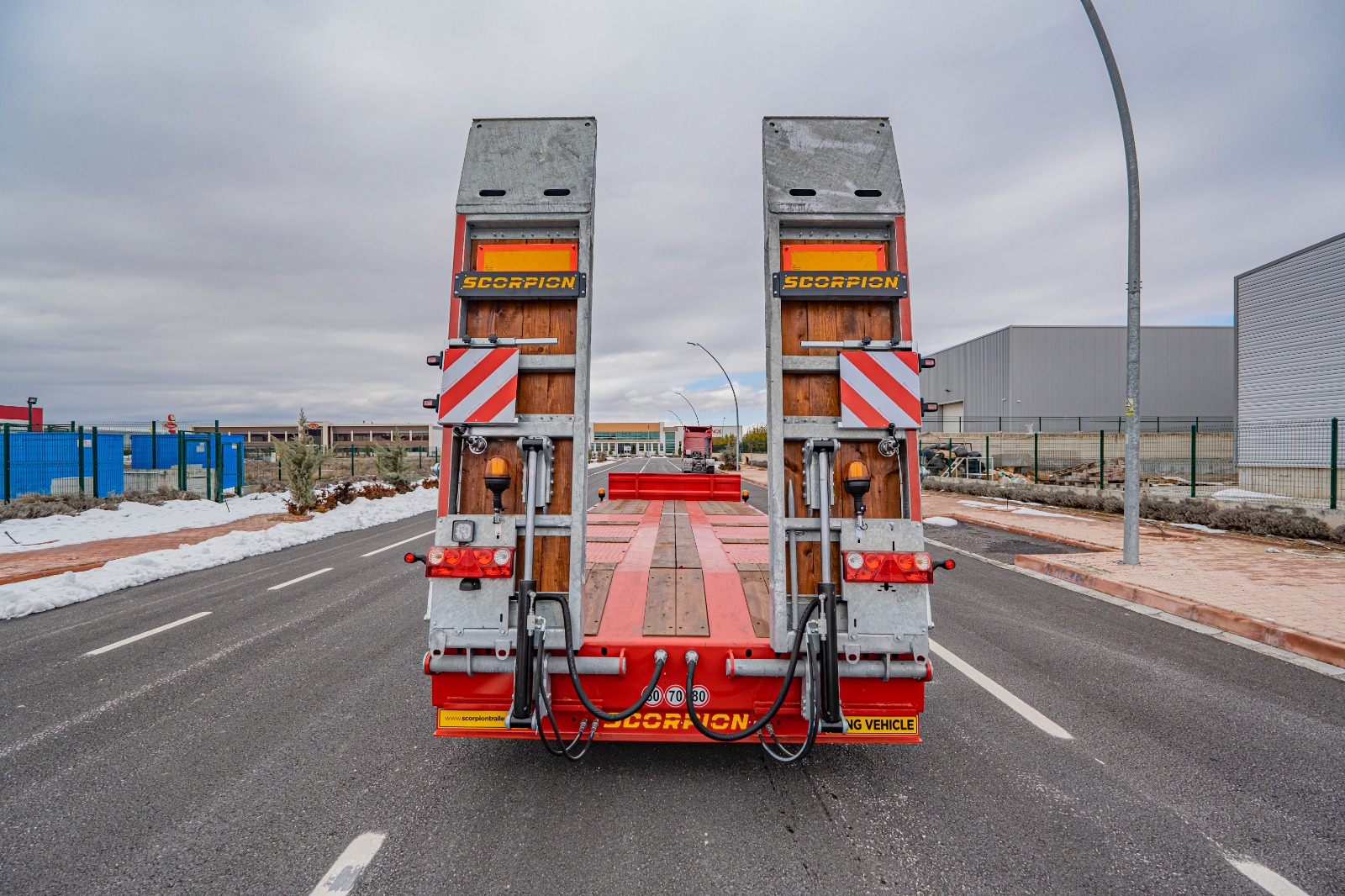

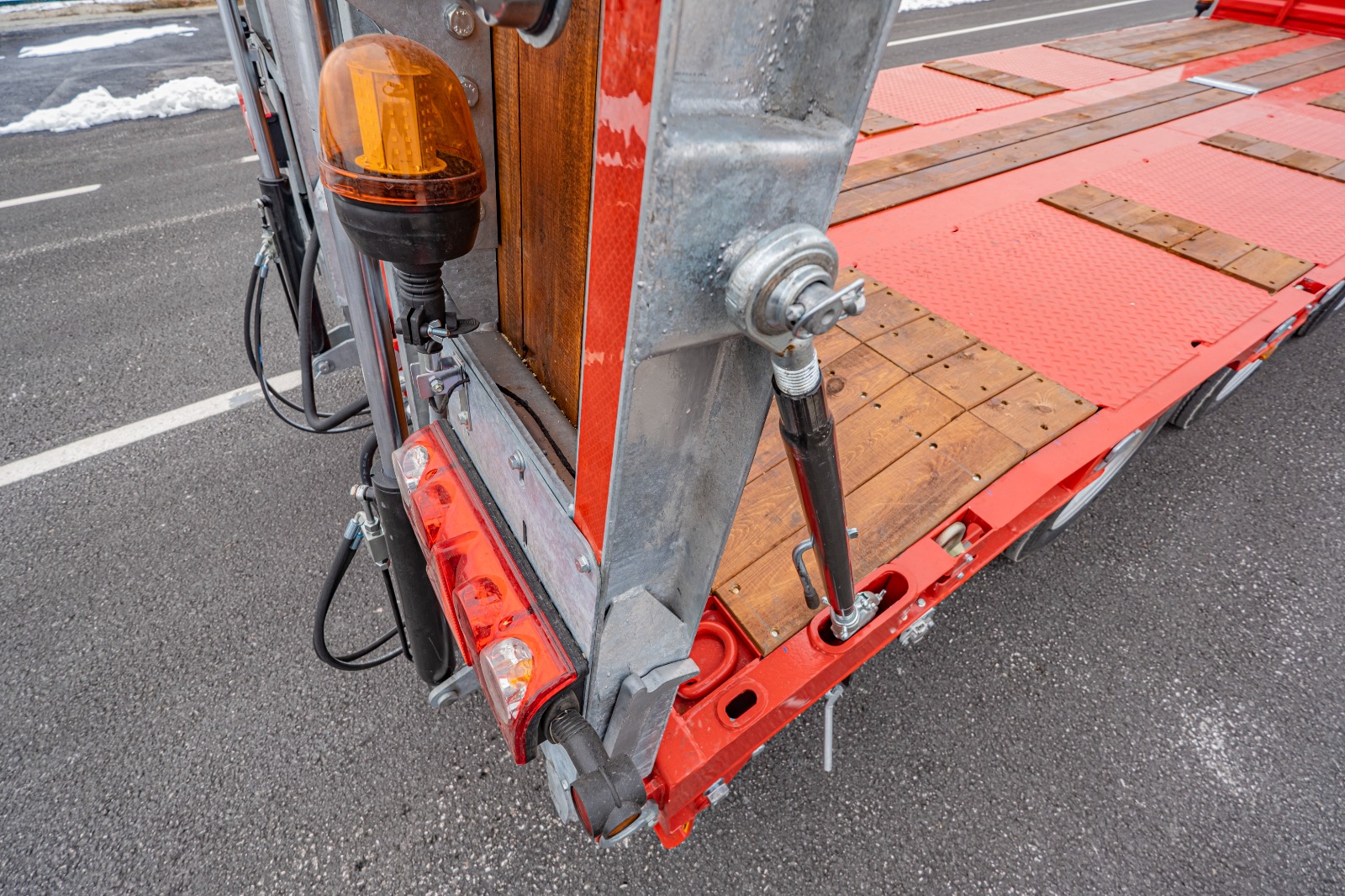

RAMPS: Hydraulic or manual operated ramps with appropriate dimensions according to the customers’ preferences.

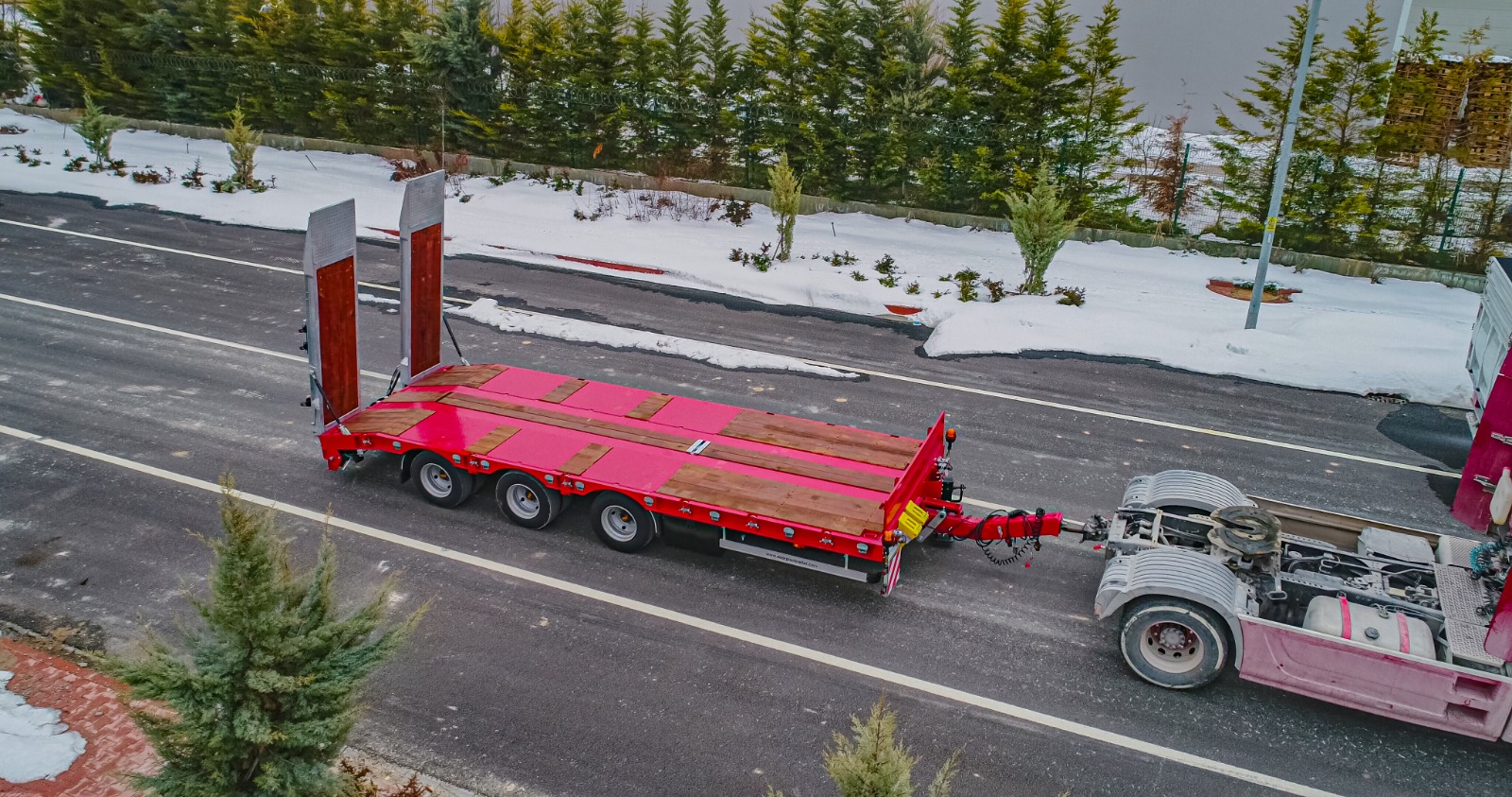

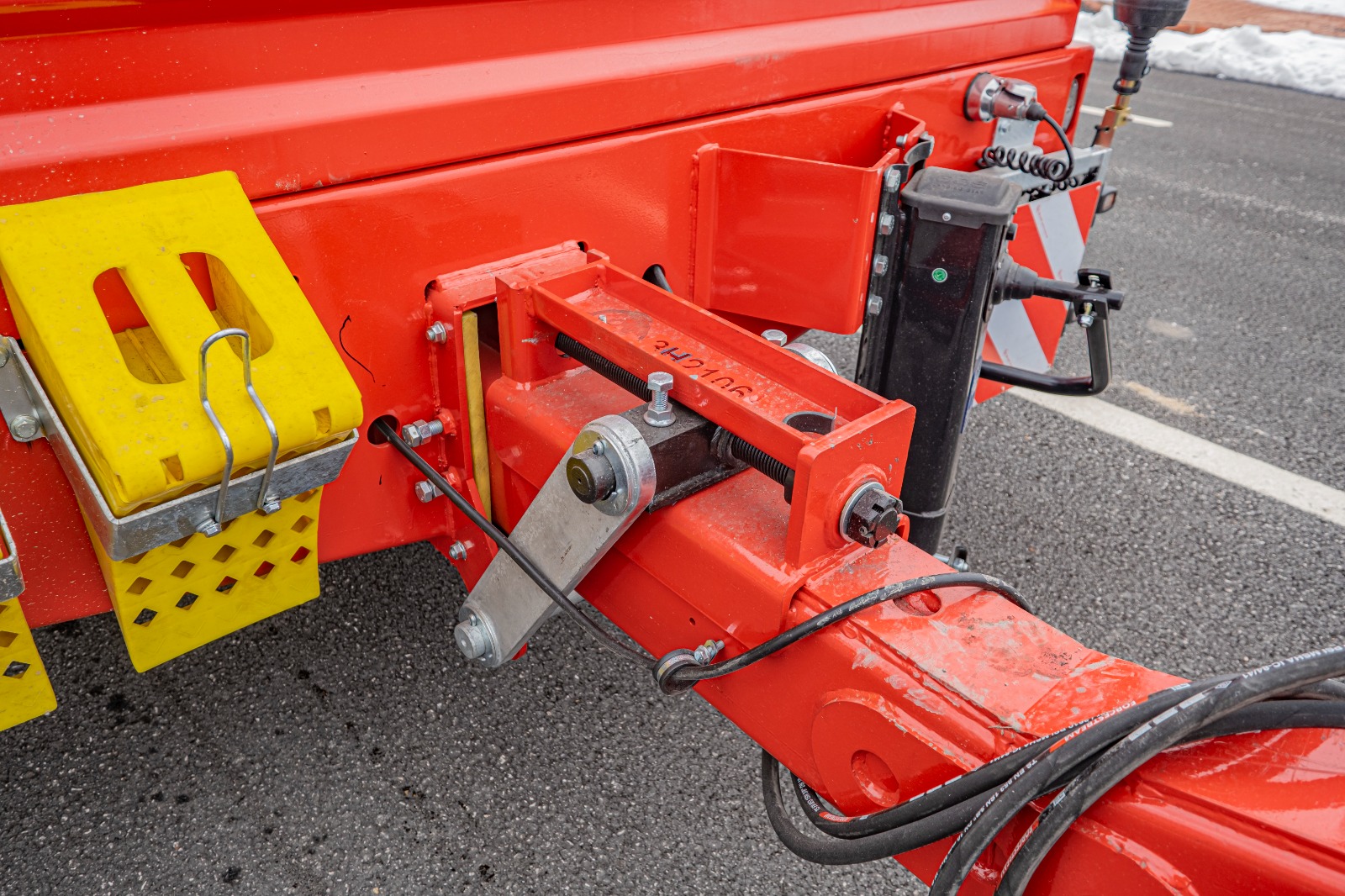

TANDEM: Made from ST52 reinforced steel, mounted to chassis and front wall, with 50mm eye and can be adjusted in mechanical system.

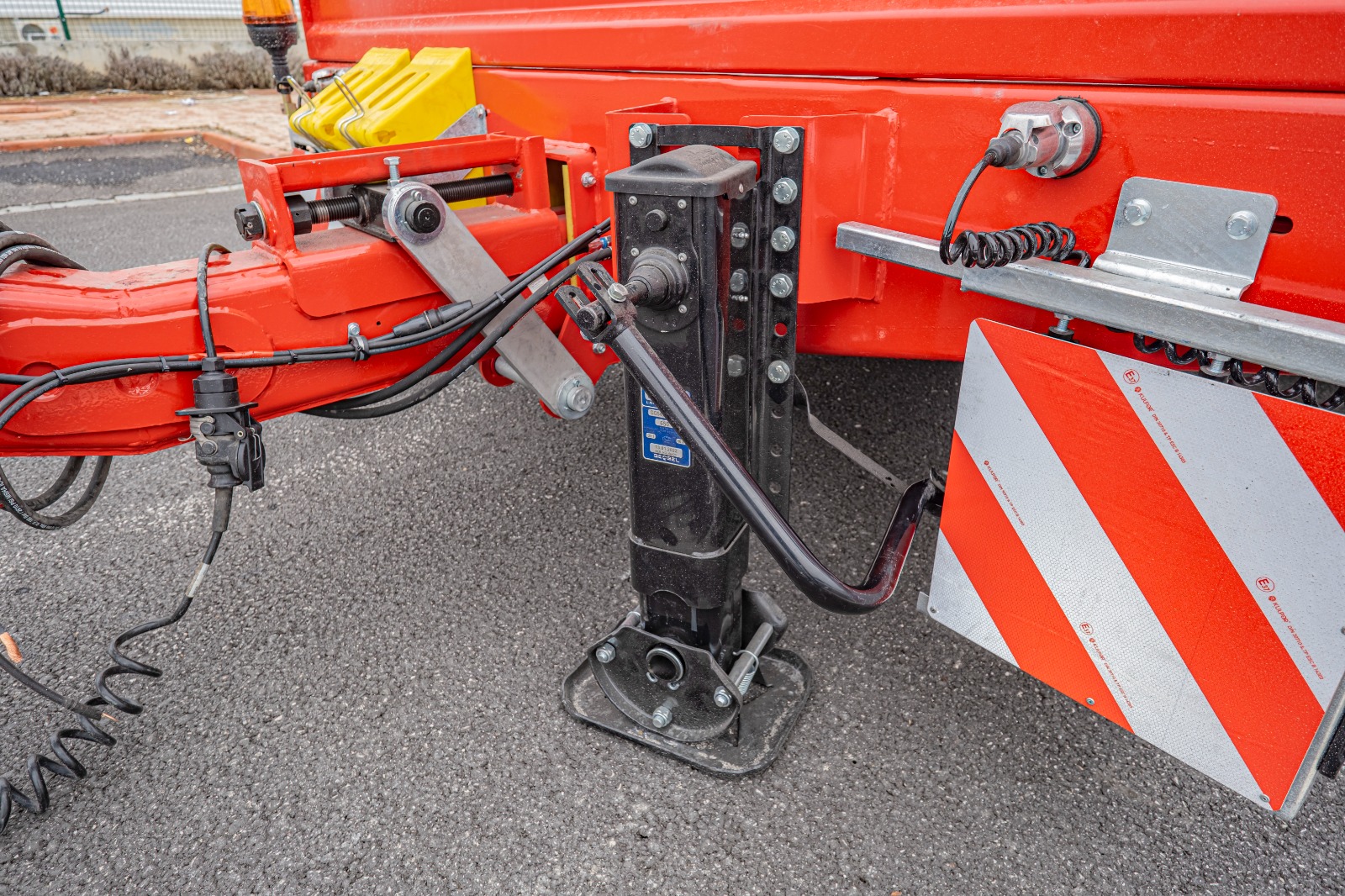

LANDING GEAR: 650 mm mechanical landing leg.
REAR STABILIZER BARS
GROSS WEIGHT: 31.000 Kgs
NET WEIGHT: 7.500 Kgs
LADEN MASS WEIGHT: 25.500 Kgs
Painting or galvanizing options are available according to the customers’ requests.
Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint.

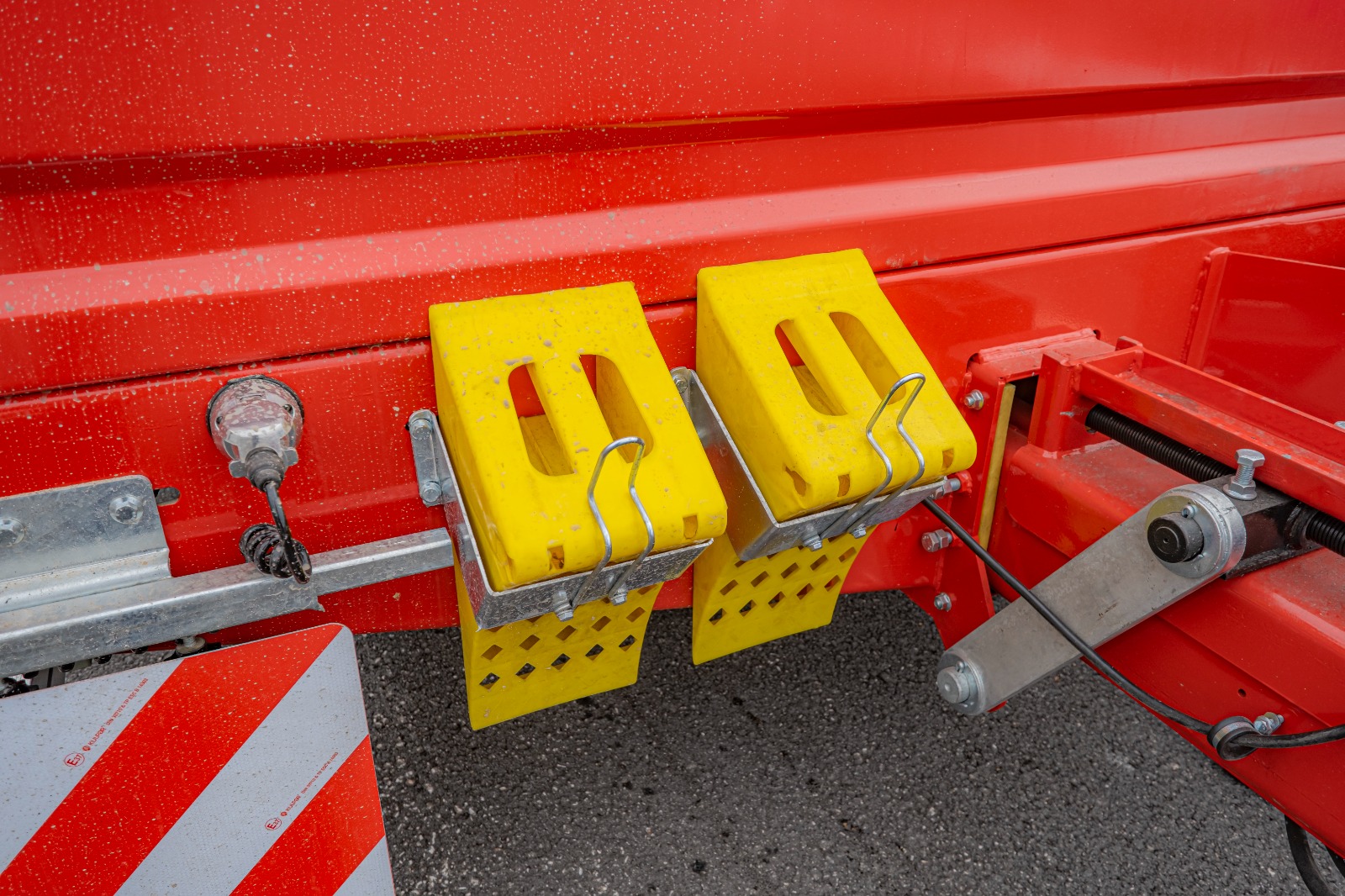

WHEEL CHOCK: Plastic (2 Pcs).

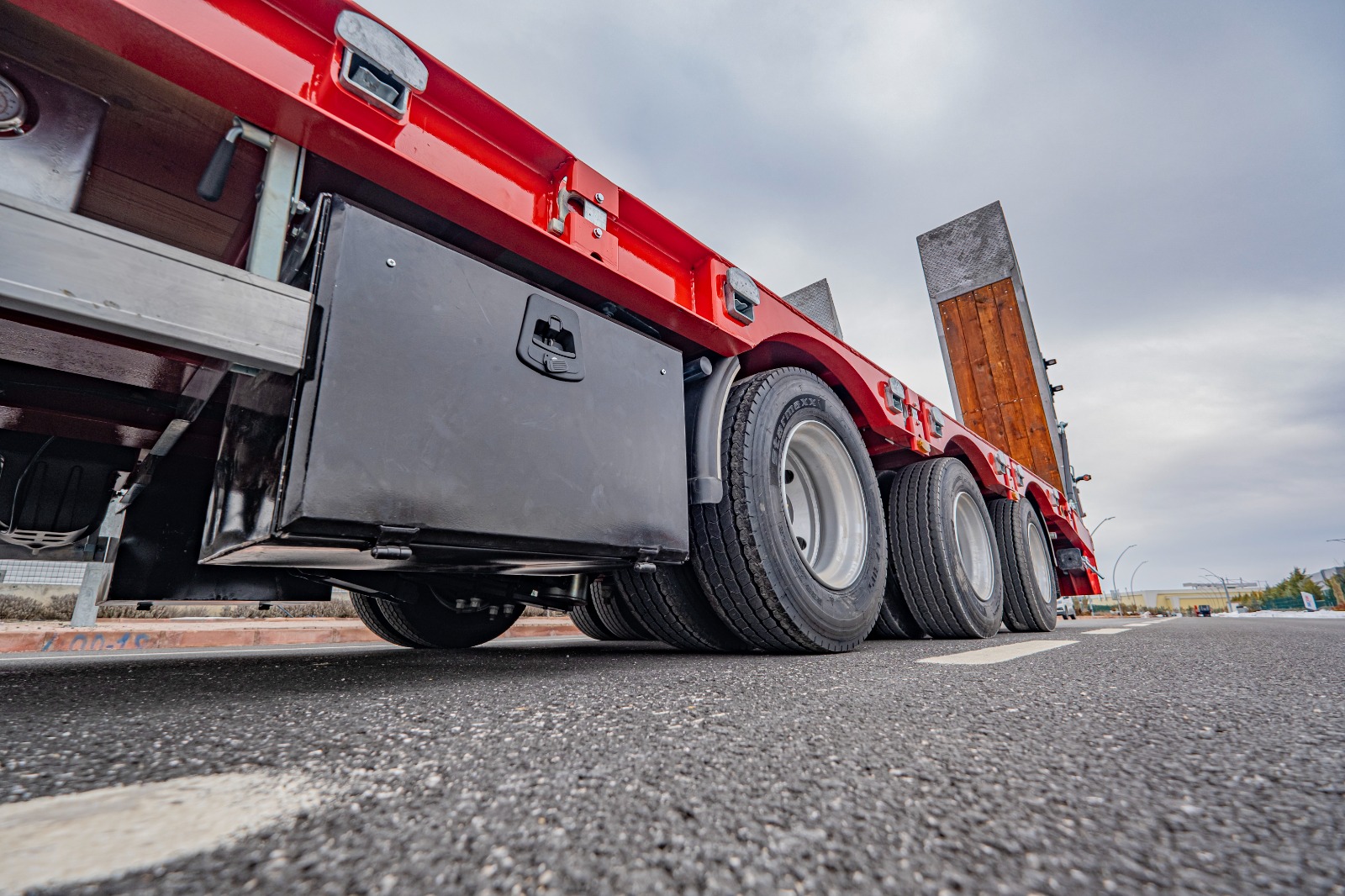

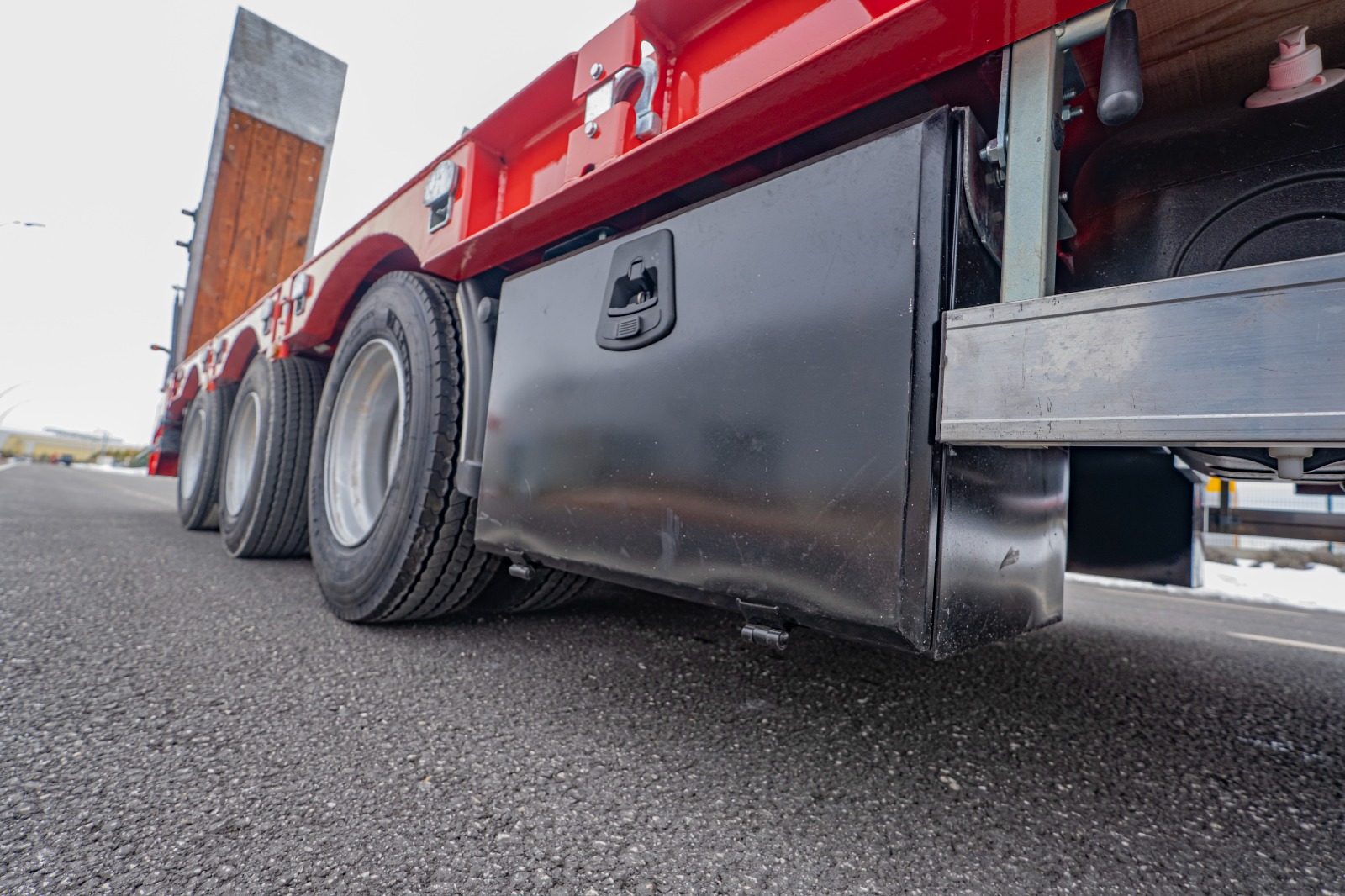

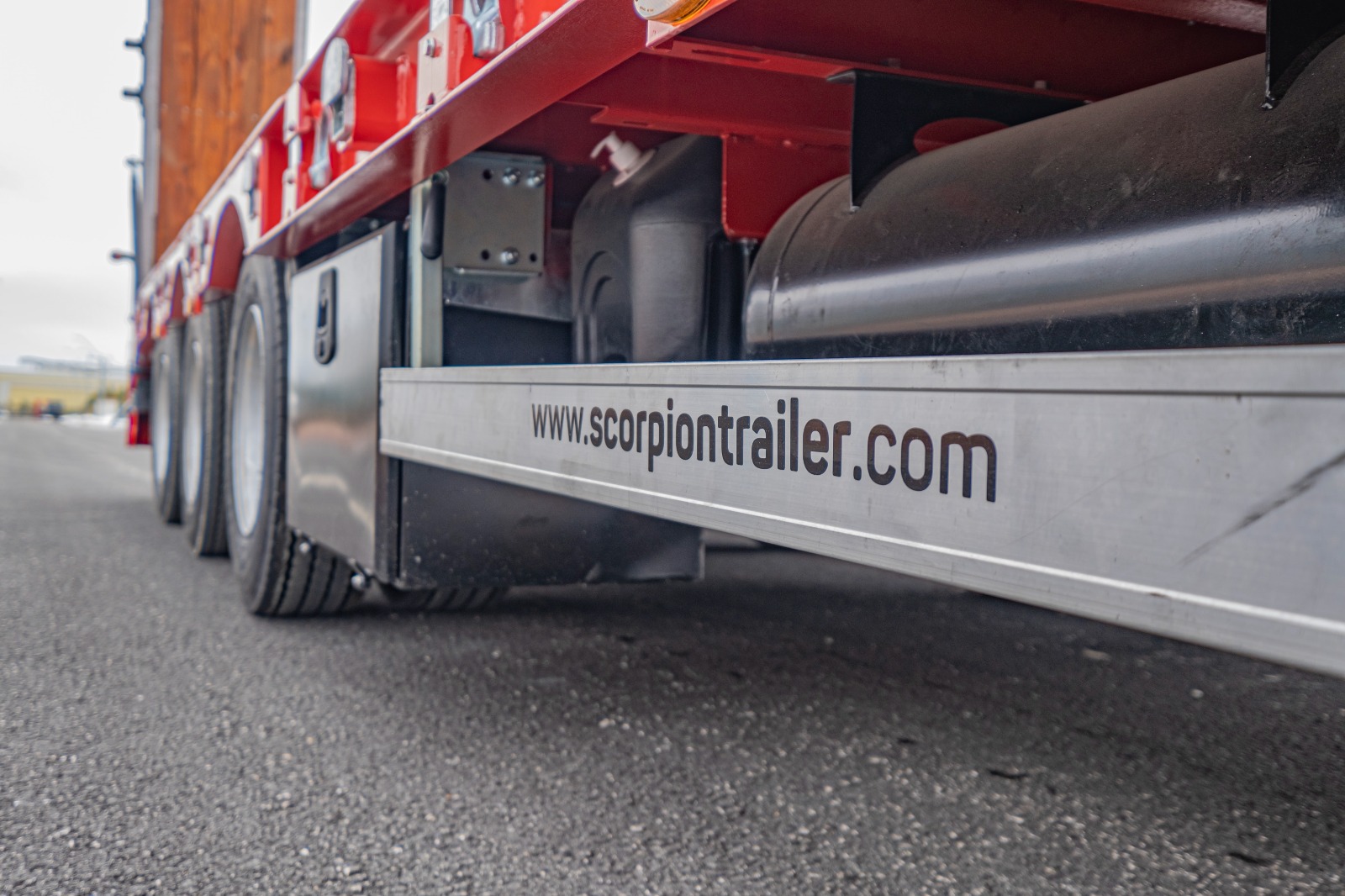

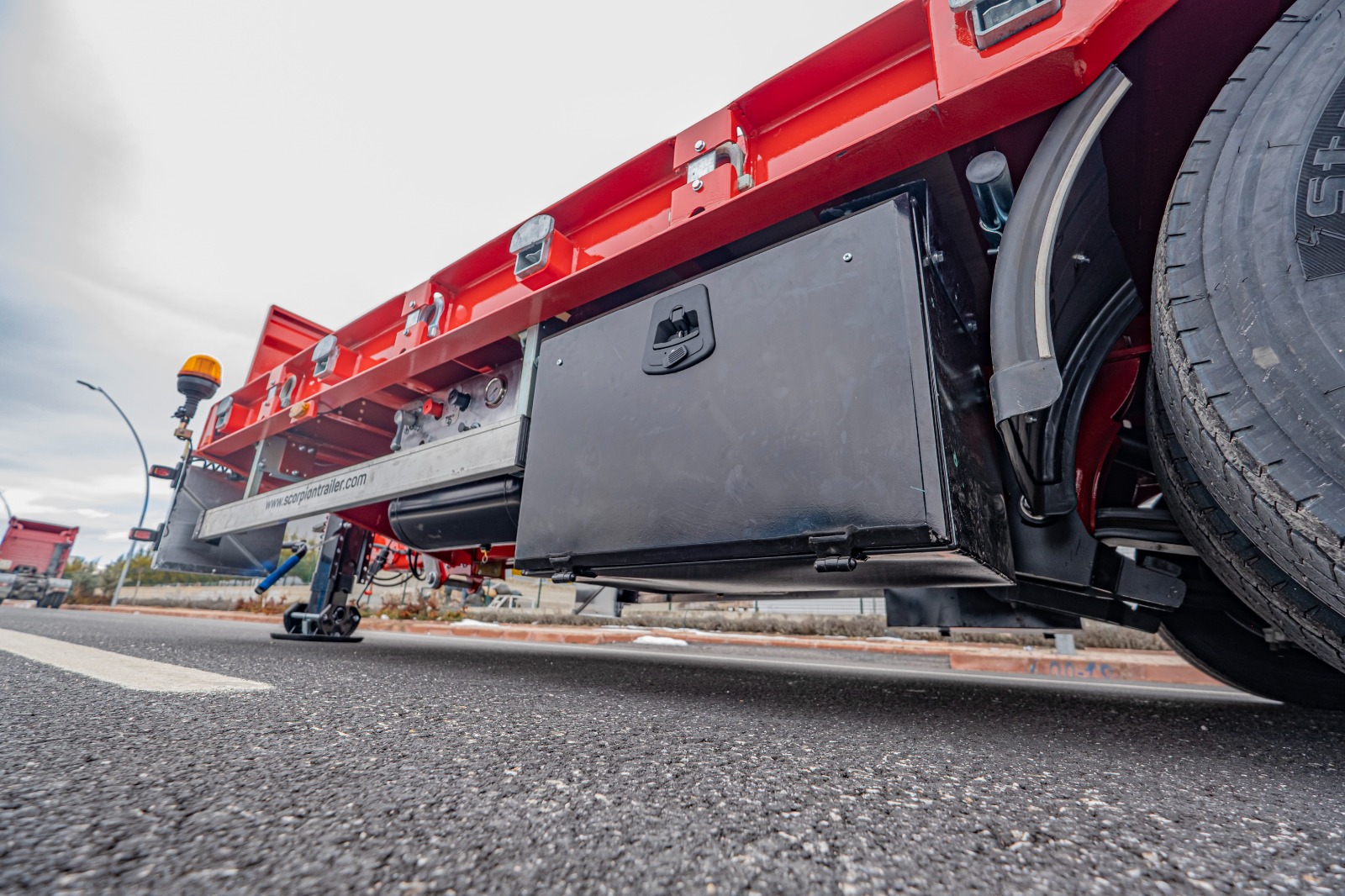

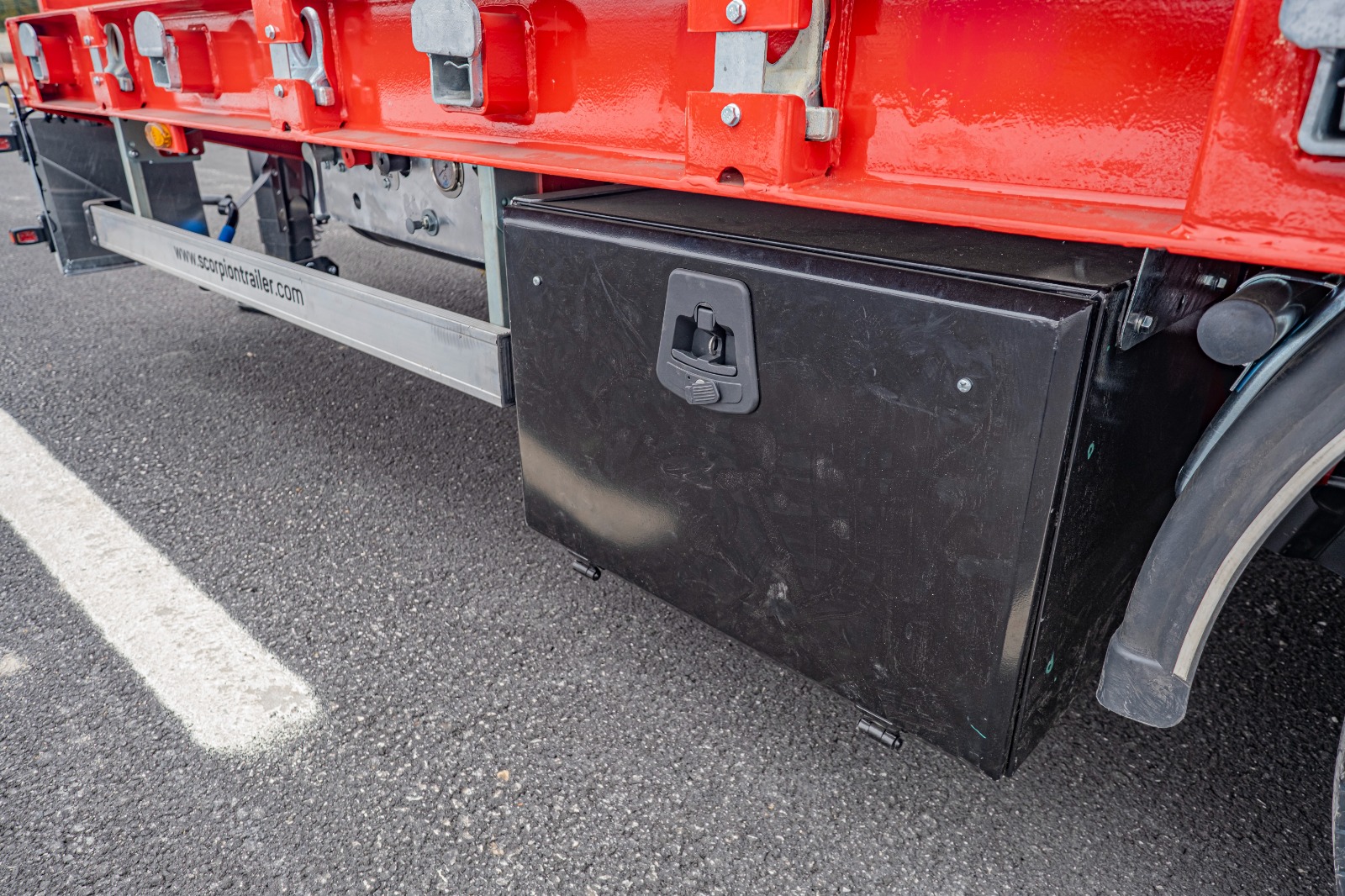

TOOL BOX: Plastic (2 Pcs, Lockable).
FENDER: Plastic Fenders.

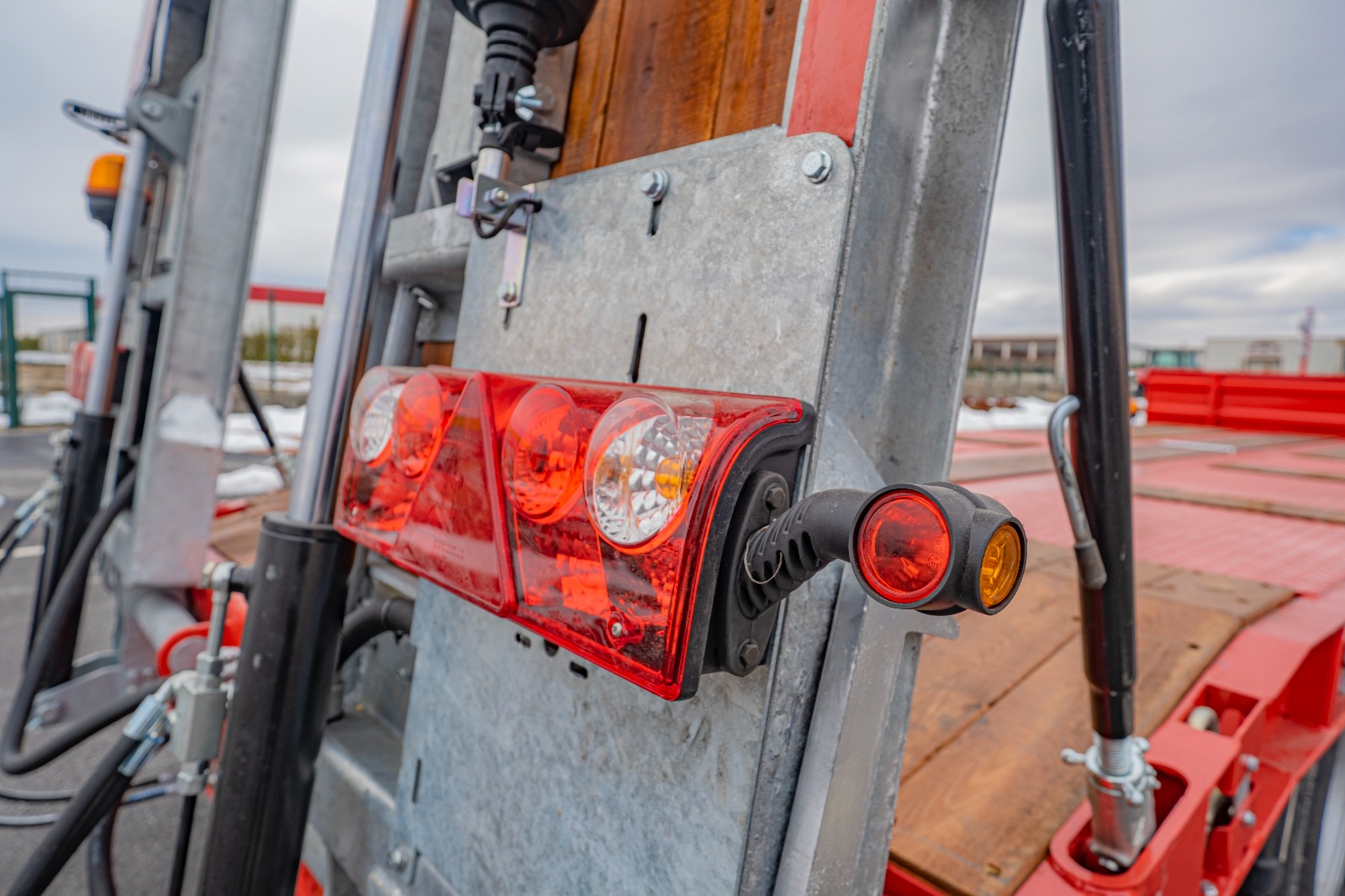

REFLECTORS: 42x42mm.
Reflectors and anti-spray mud laps in accordance with European Standards.
RAMPS: Sliding of ramps inside and outside, foldable ramps.
SELF-STEERING AXLE
GALVANIZATION: The chassis and superstructure are immersed in the liquid zinc pool at 450 degrees C and the whole surface is covered with zinc. It provides protection against rusting and corrosion between 30 and 40 years by galvanizing.

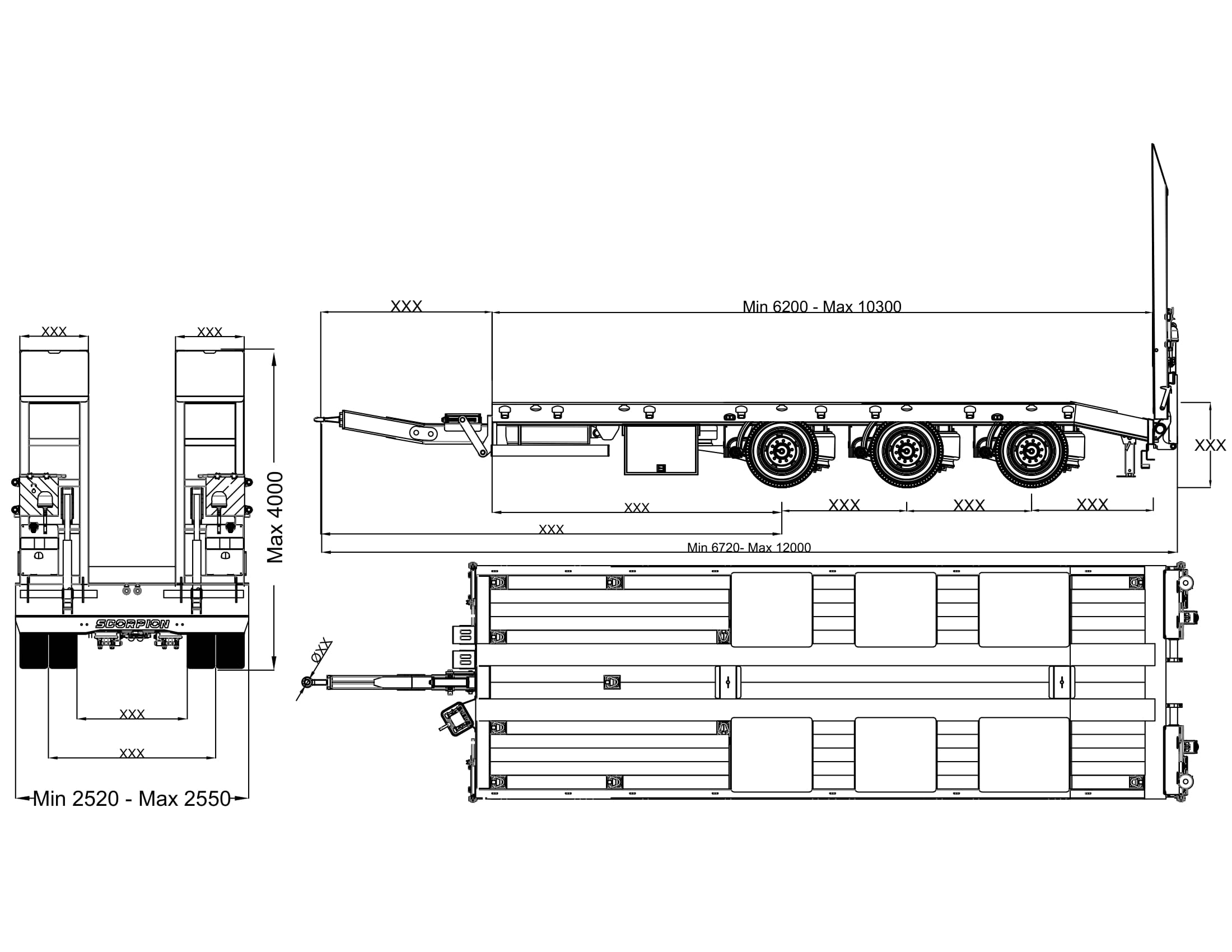

Measurements of vehicle can be designed within min./max. values in accordance with customers’ requirements.
