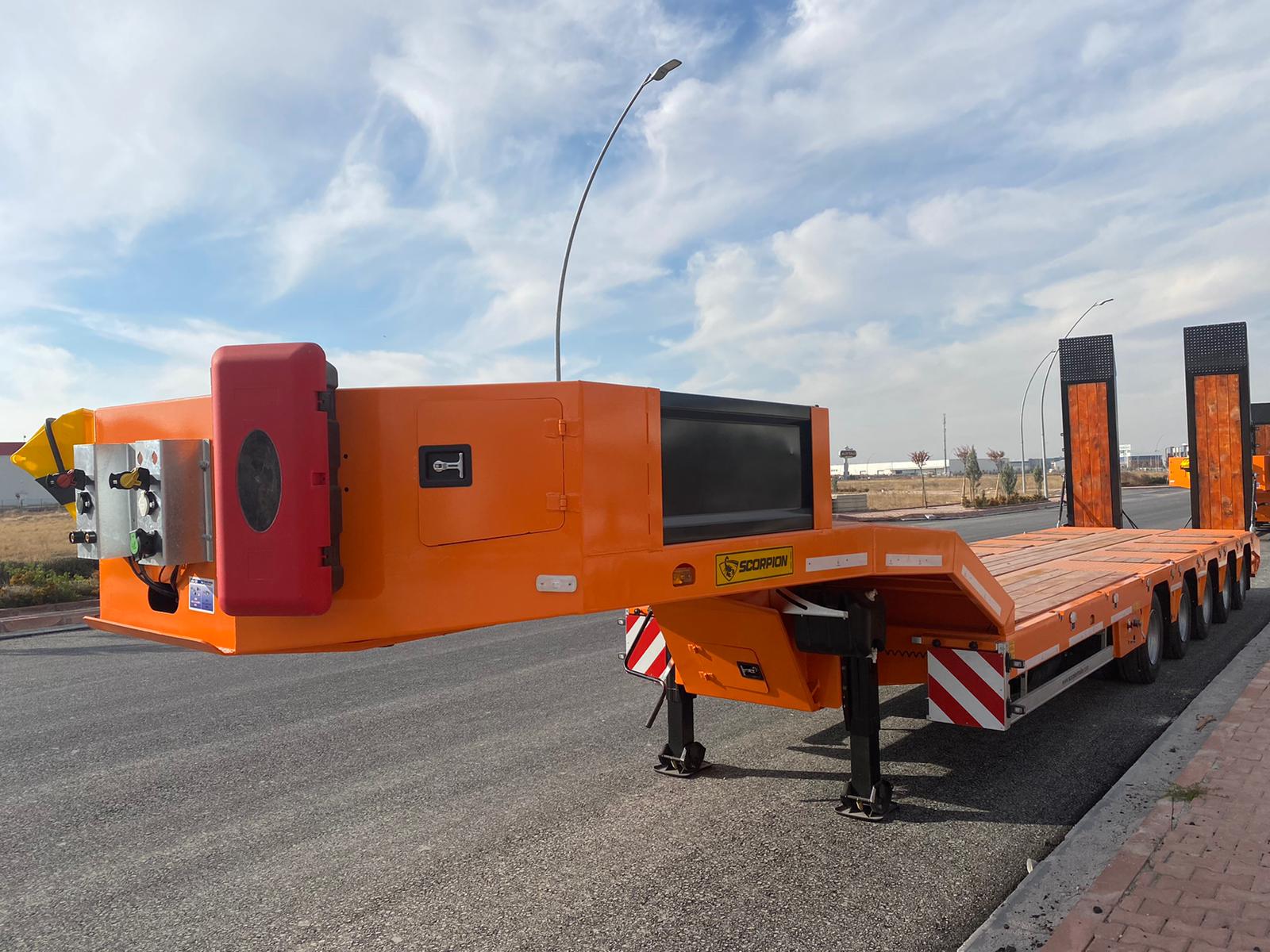

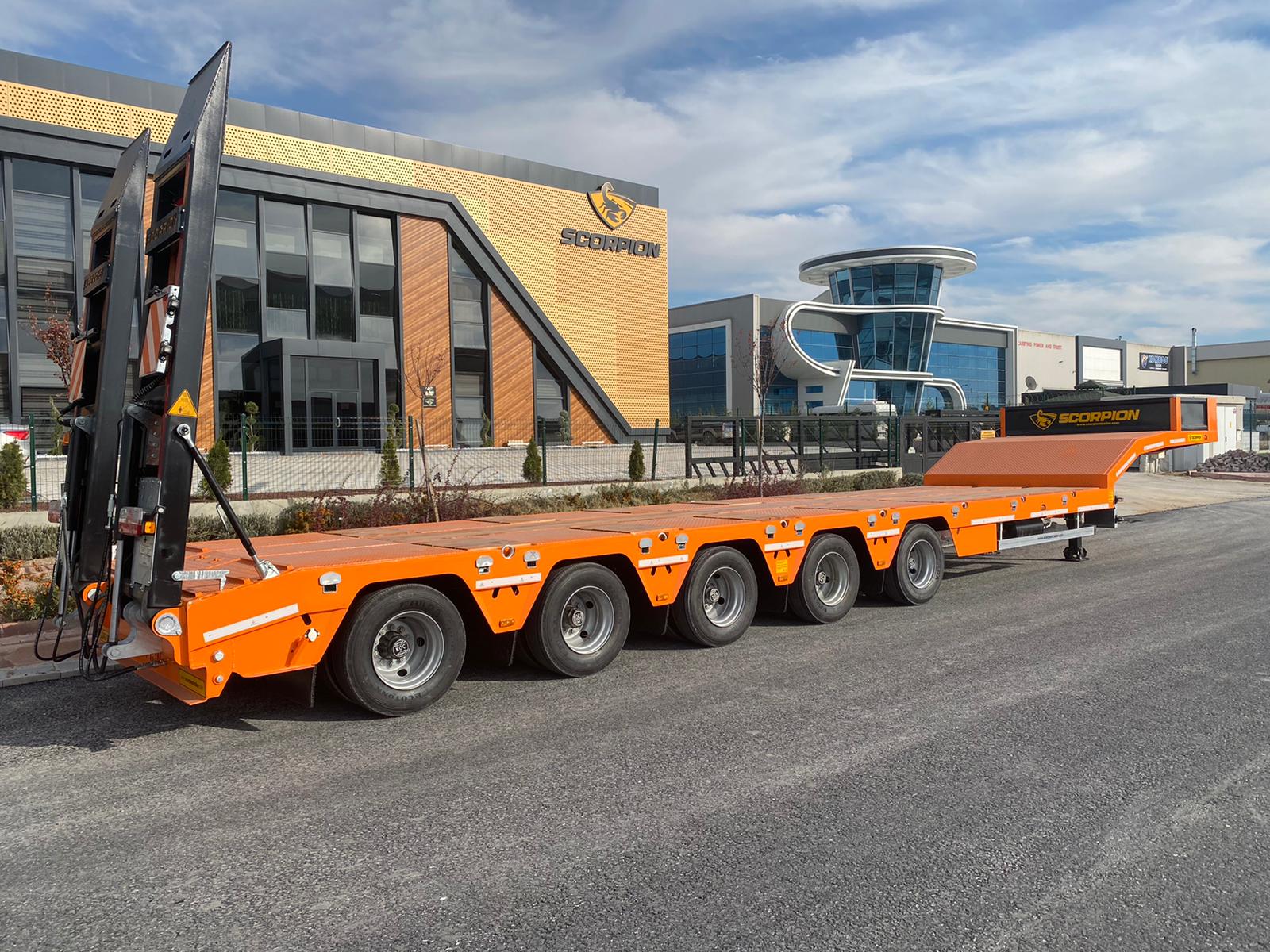

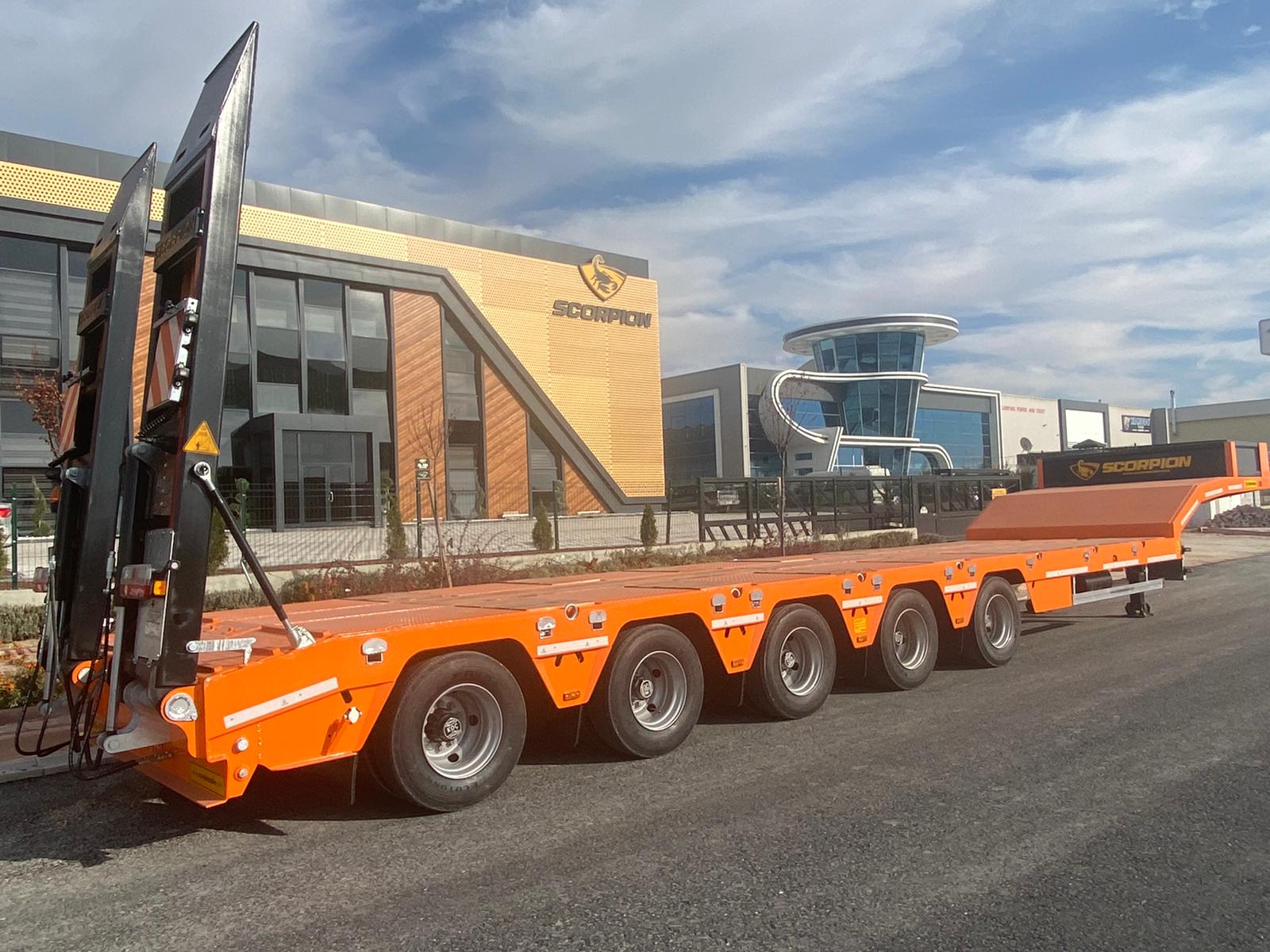

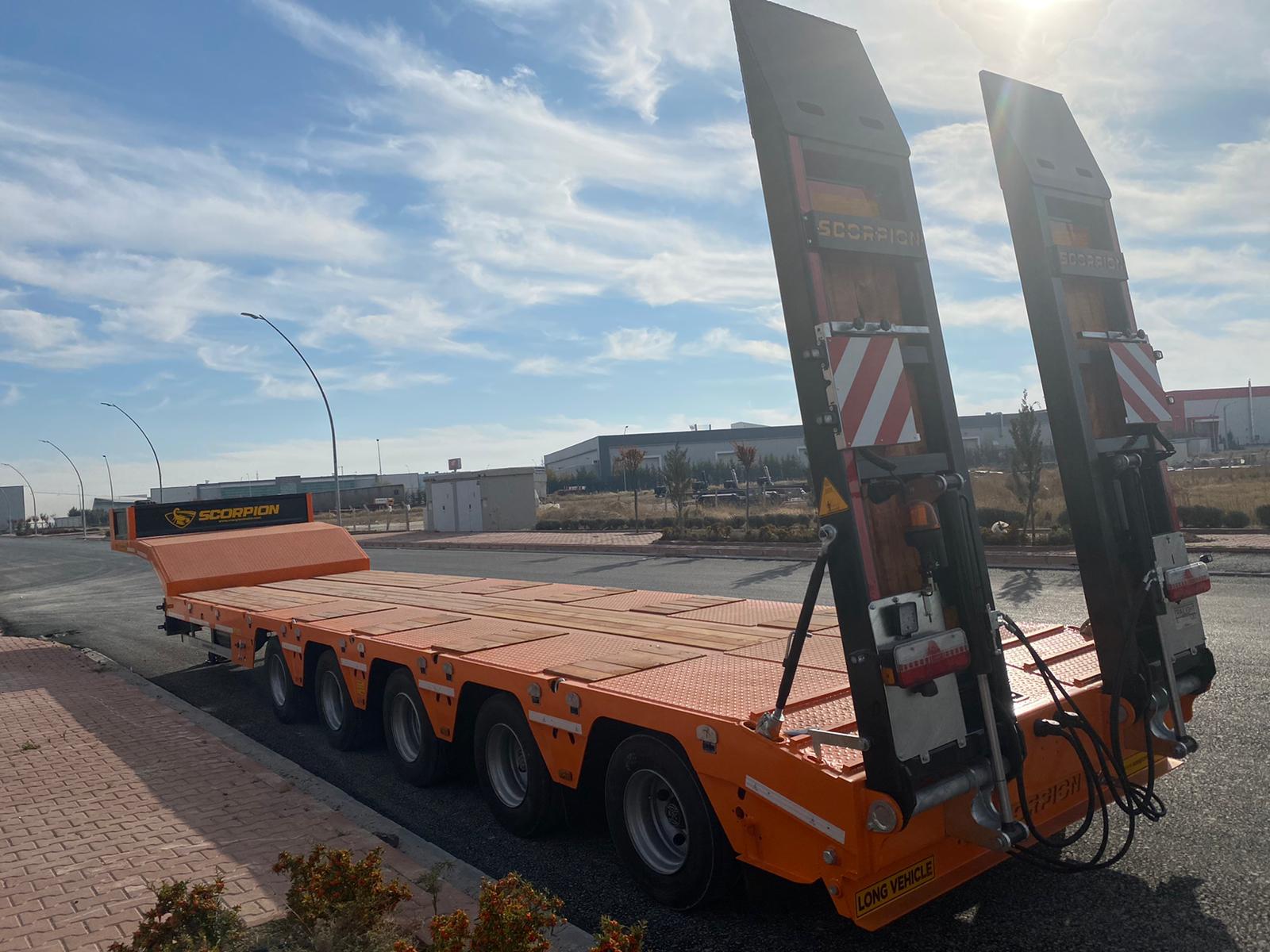

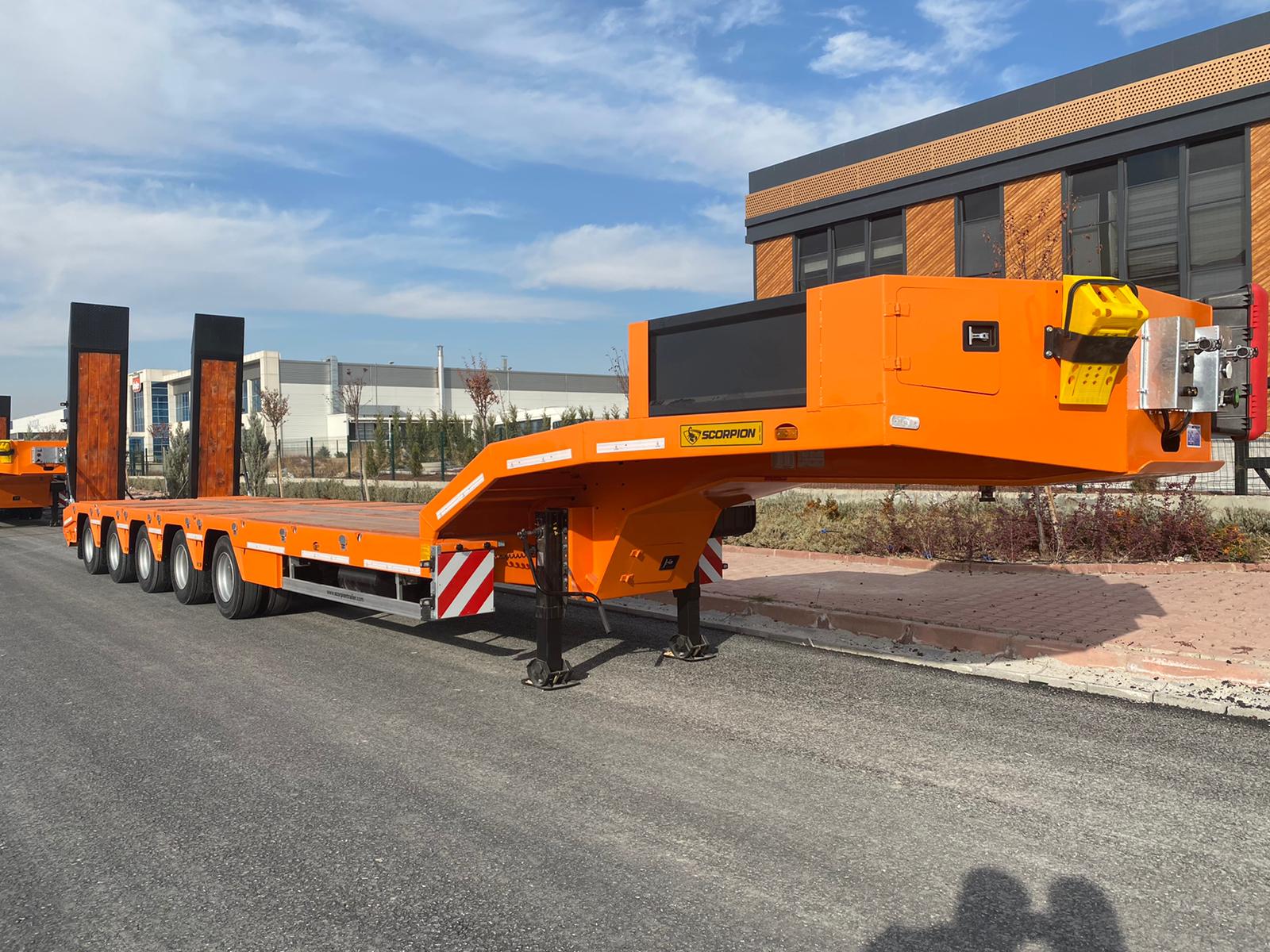

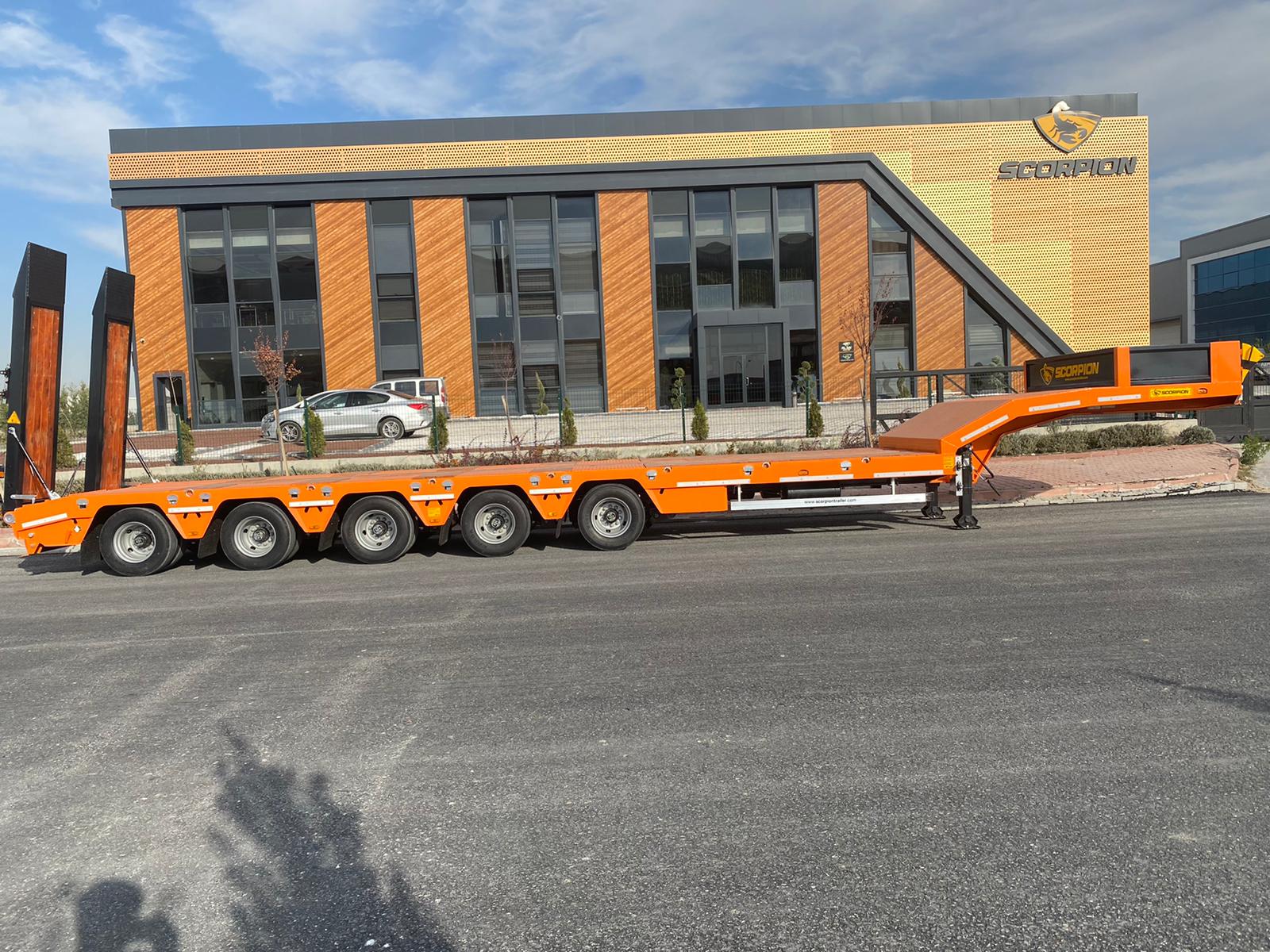

HKM5 - 5 Axle Semi-Trailer Lowbed
CATEGORY: Semi-Trailer Lowbed
TYPE: 5 Axle Lowbed Semi Trailer
WHATSAPP SUPPORT:
SHARE:

• TECHNICAL DETAILS

CHASSIS: ST52 main frame in accordance with EN 10025-2 2004 Standards.

AXLE GROUP: 12 – tonner 5 pcs R:22,5” or 10 – tonner 5 pcs R:17,5” European Brand (SAF HOLLAND) or Turkish Brand.

SUSPENSION: Air Suspension.

TIRES AND RIMS: Tire options suitable for 17,5” and 22,5” rims.

ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards.

BRAKE SYSTEM: EBS brake system (4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations.

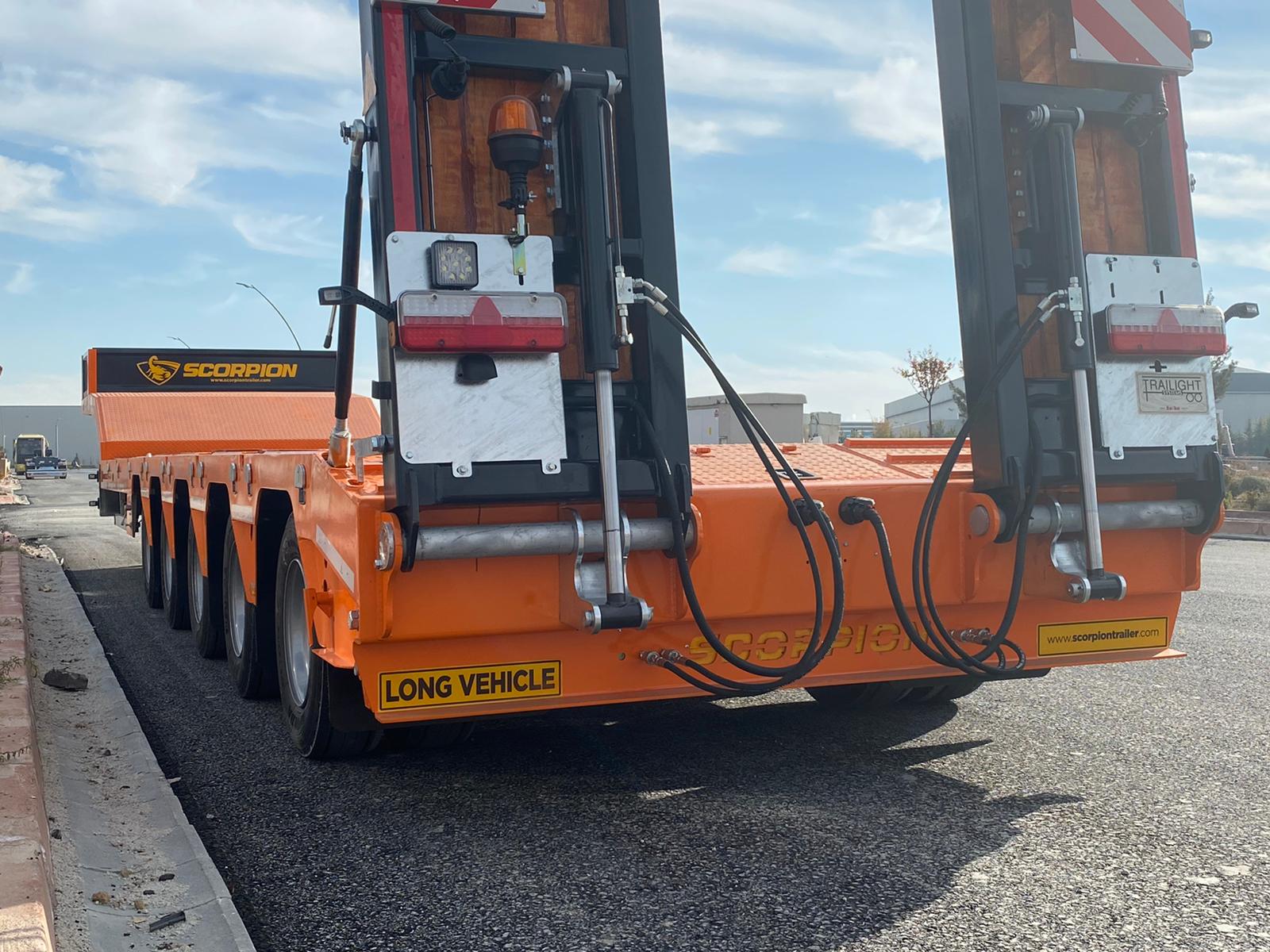

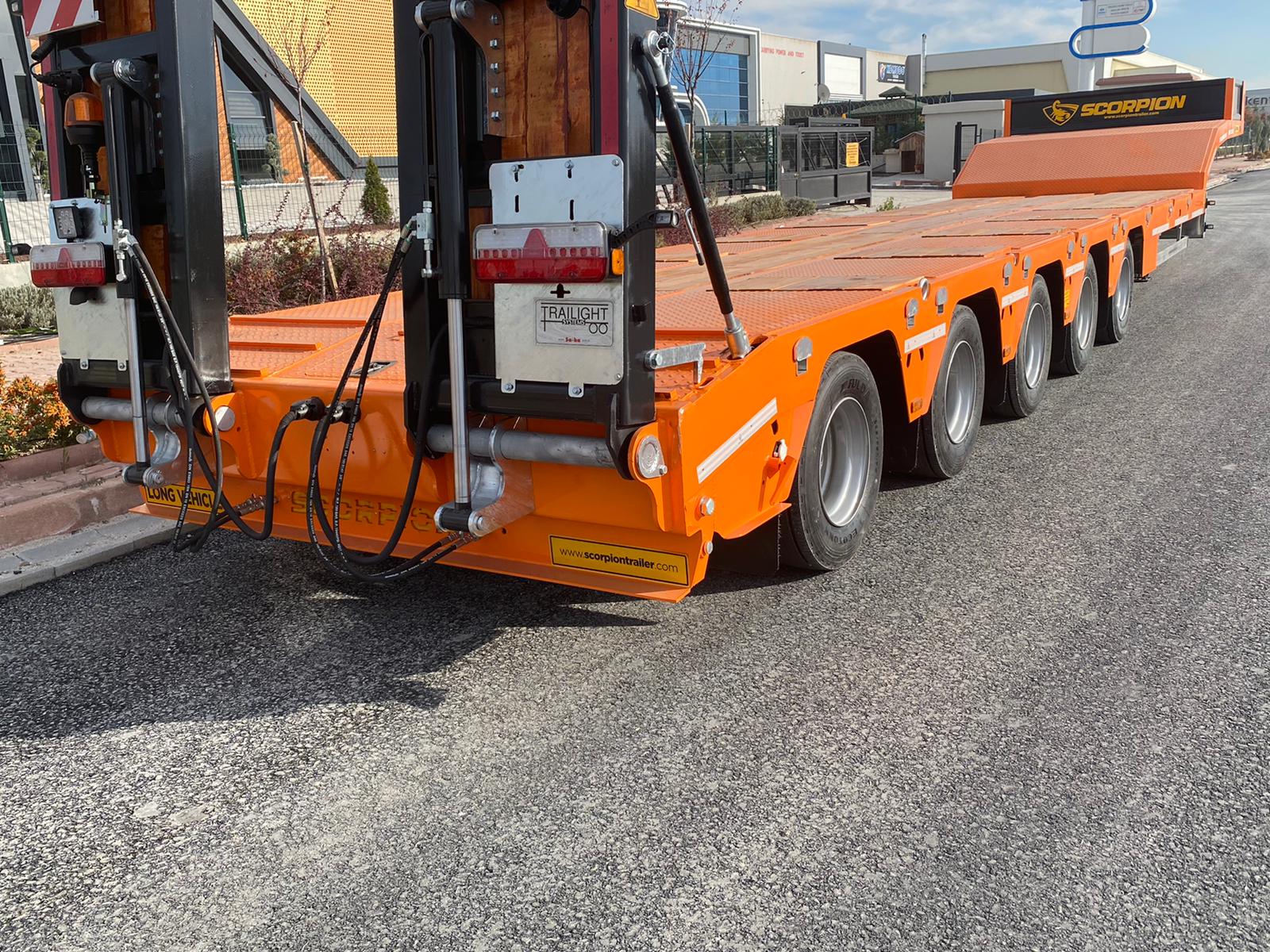

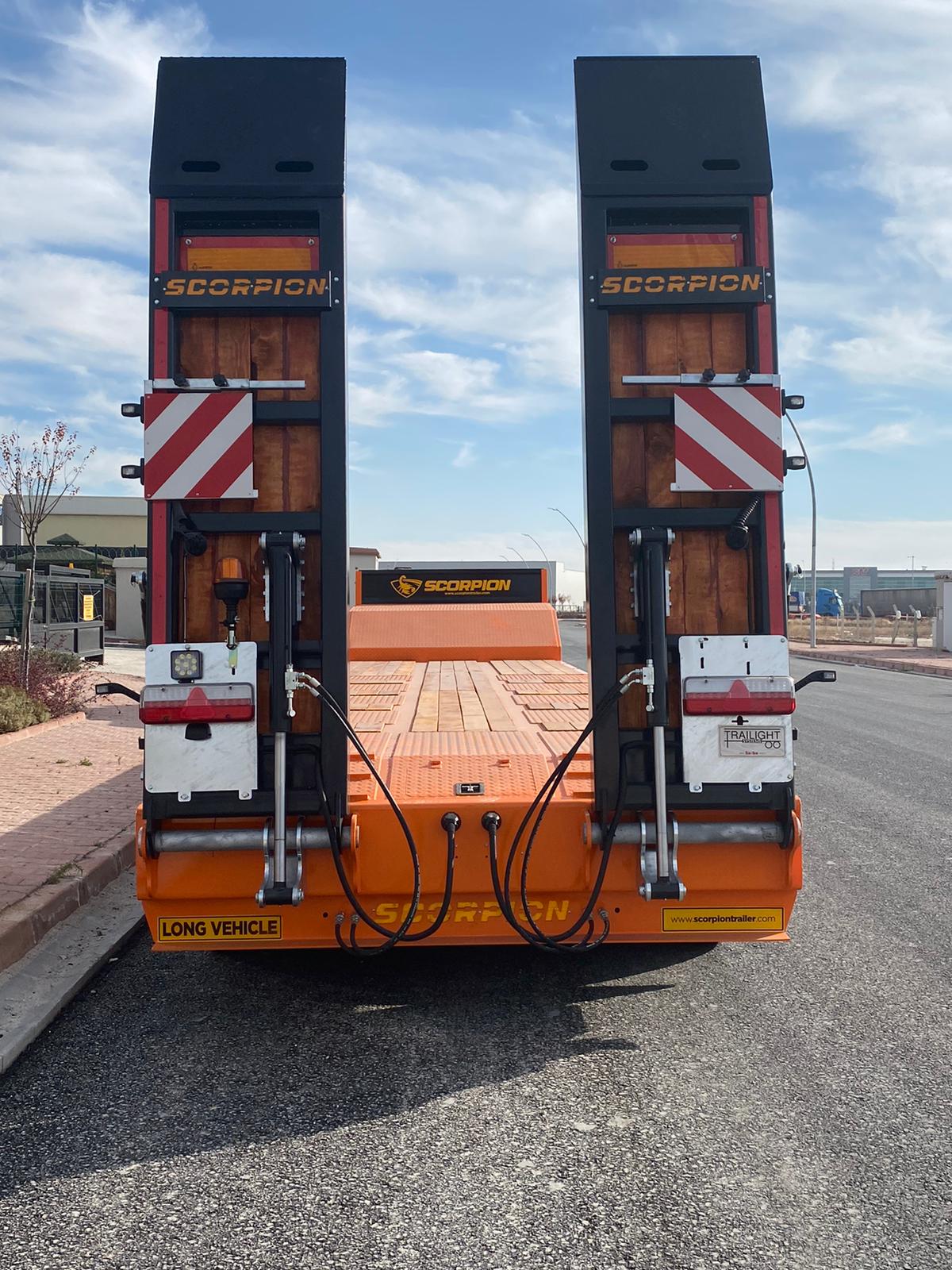

RAMPS: Hydraulic ramps with appropriate dimensions according to the customers’ preferences.

KING-PIN: 2” 42 CRMO4 Steel King-Pin (in accordance with DIN 74080) or 3,5” 42 CRMO4 Steel King-Pin (in accordance with DIN 74083) are used.

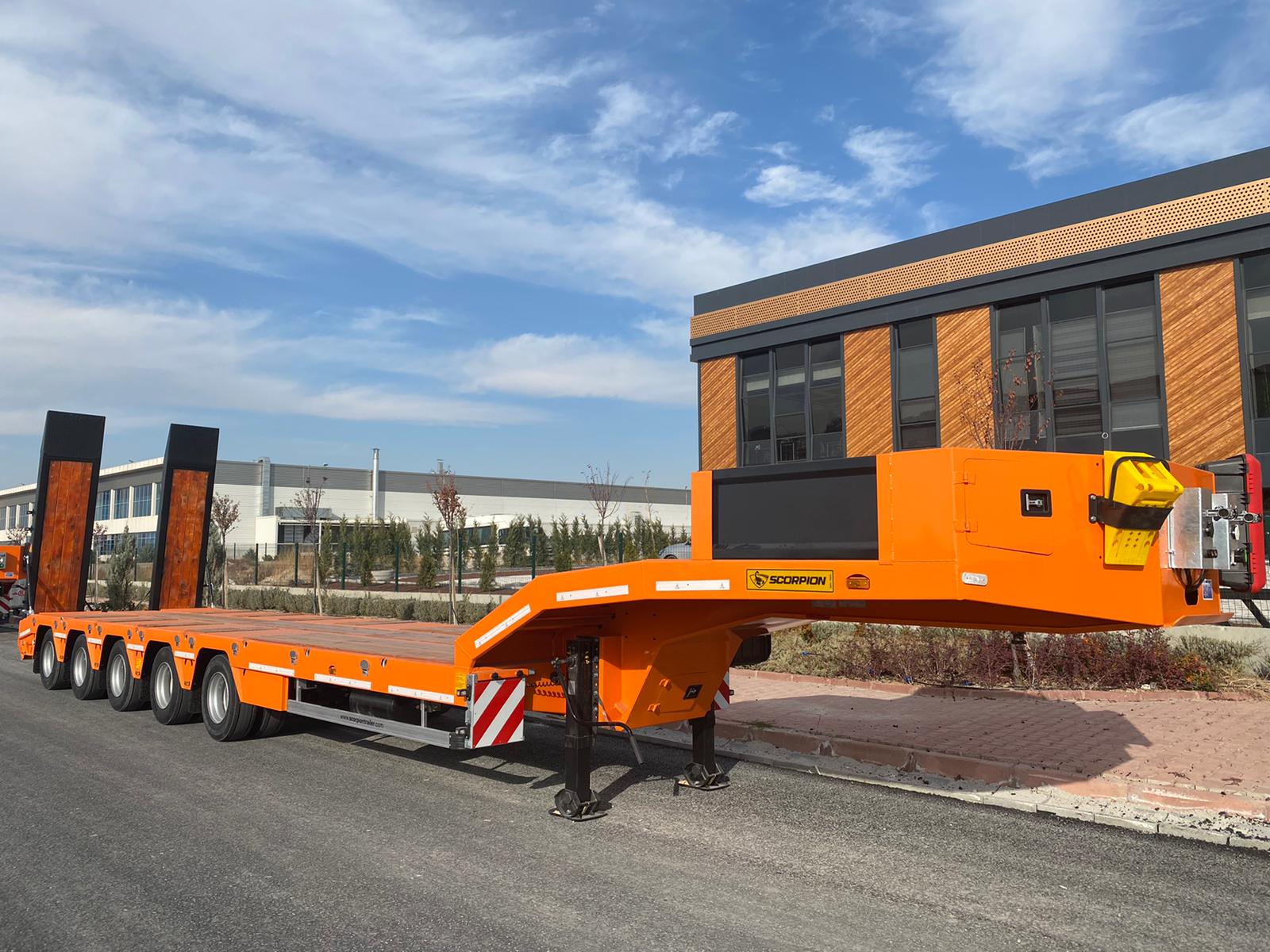

LANDING GEAR: 24 – tonner 750mm or 850mm mechanical landing legs.

REAR STABILIZER BARS

GROSS WEIGHT: 72.000 Kgs

NET WEIGHT: 12.000 Kgs

LADEN MASS WEIGHT: 60.000 Kgs

Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint

Color will be decided according to the customers’ requests

WHEEL CHOCK: Plastic (1 Pc).

FENDER: Plastic Fenders.

FIRE EXTINGUISHER CABINET: 1 Pc.

WATER TANK: 1 Unit.

TOOL BOX: Closets available on Gooseneck.

REFLECTORS: 42x42mm

Reflectors and anti-spray mud laps in accordance with European Standards.

RAMPS: Sliding of ramps inside and outside, foldable ramps

SELF – STEERING AXLE

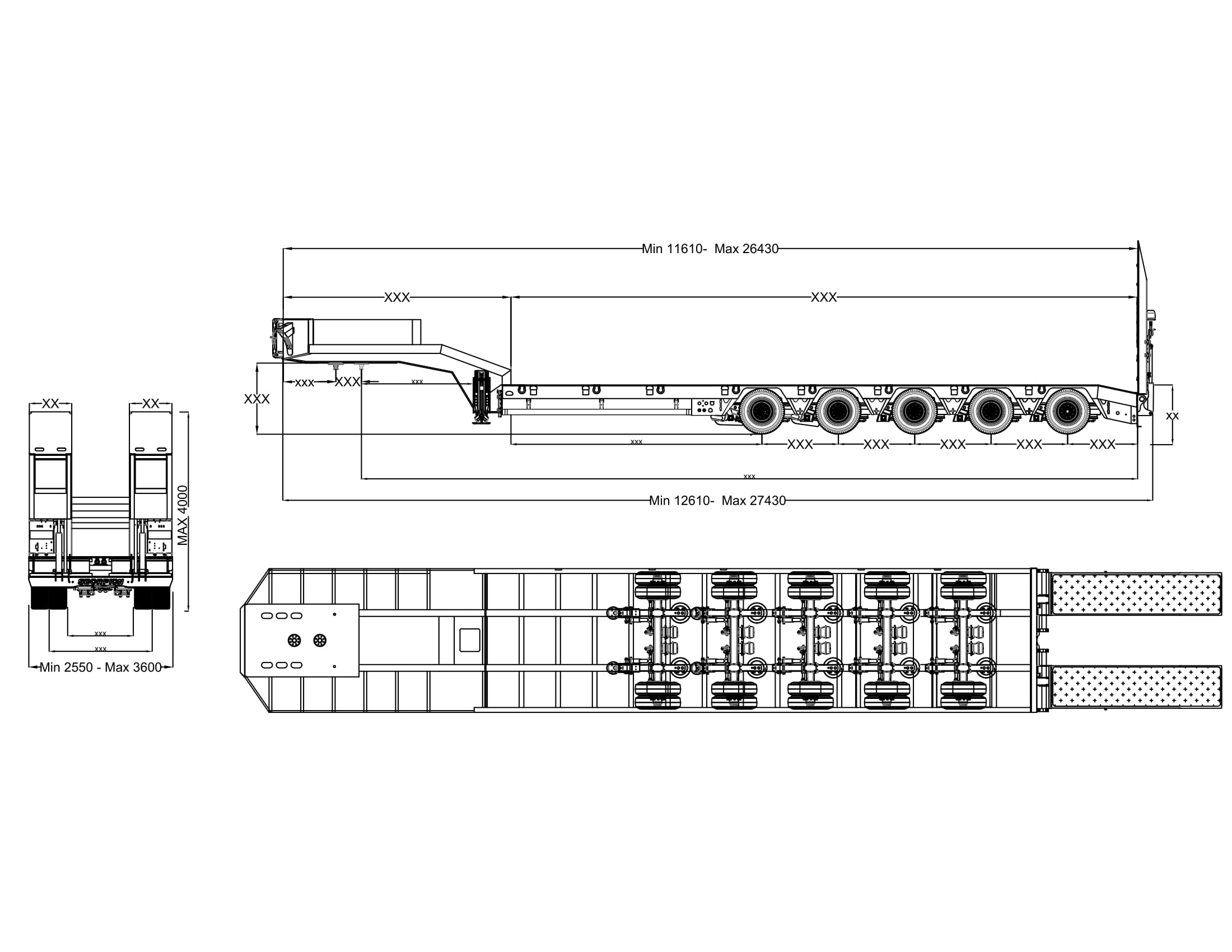

Measurements of vehicle can be designed within min./max. values in accordance with customers’ requirements.
