CHASSIS: ST52 main frame in accordance with EN 10025-2 2004 Standards.
AXLE GROUP: 2 pieces 11-ton capacity, drum-type, R:17,5” European Brand (SAF HOLLAND) or Turkish Brand.
SUSPENSION: Air Suspension.
TIRES AND RIMS: Tire options suitable for 17,5” rims.
ELECTRICAL SYSTEM: 24 V Electrical system in accordance with European Standards.
BRAKE SYSTEM: EBS brake system (4S/2M)(4S/3M) in conformity with 71 /320 / EWG or ECE R 13 Regulations.
COUPLING EQUIPMENTS: SCORPION brand coupling device with 50mm - D190 KN eye in accordance with European Standards.
TURNTABLE: 110 ‘’ U’’ type double ball casting DEKSAN brand turntable with a carrying capacity of 30 tons is used.
RAMPS: Hydraulic or manual operated ramps with appropriate dimensions according to the customers’ preferences.
REAR STABILIZER BARS
GROSS WEIGHT: 22.100 Kgs
NET WEIGHT: 6.700 Kgs
LADEN MASS WEIGHT: 15.400 Kgs
Painting or galvanizing options are available according to the customers’ requests.
Main chassis and entire vehicle will be painted in paint oven as Washing + Sandblasting + two coat epoxy primer + two coat acrylic paint.
WHEEL CHOCK: Plastic (2 Pcs).
FENDER : Plastic Fenders.
REFLECTORS: 42x42mm Reflectors. Reflectors and anti-spray mud laps in accordance with European Standards.
RAMPS: Sliding of ramps inside and outside, foldable ramps
SELF – STEERING AXLE
GALVANIZE: The chassis and superstructure are immersed in the liquid zinc pool at 450 degrees C and the whole surface is covered with zinc. It provides protection against rusting and corrosion between 30 and 40 years by galvanizing.

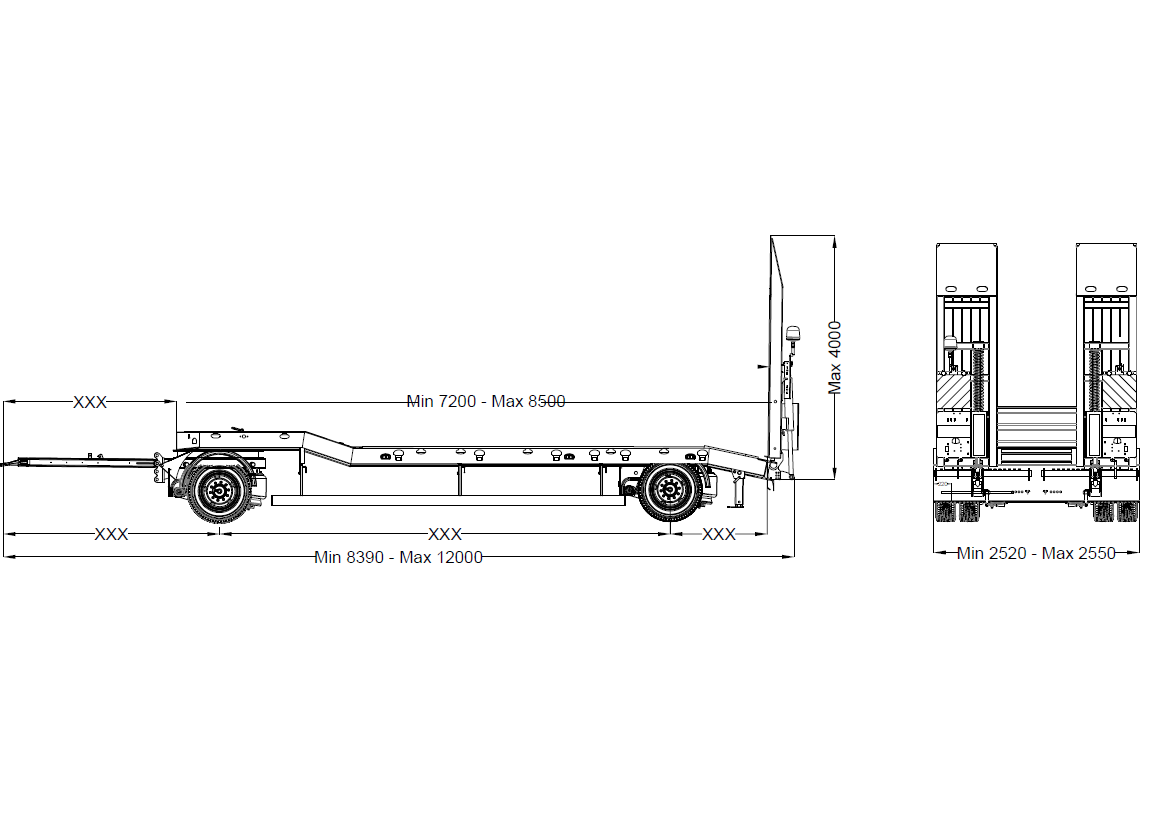

VEHICLE DIMENSIONS: Measurements of vehicle can be designed within min./max. values in accordance with customers’ requirements.
